702229 630mAh High Voltage Lipo Battery
The 702229 3.8V 630mAh High Voltage LiPo Battery is designed for electronic products that require higher energy density, stable voltage output, and longer operating time within limited internal space. With a 3.8V high-voltage platform and 630mAh capacity, this battery is suitable for smart wearables, Bluetooth devices, portable translators, IoT sensors, smart tracking products, and compact consumer electronics.
As a professional lithium polymer battery manufacturer, LithoTop provides customized 702229 high voltage LiPo battery solutions, including connector selection, wire length, PCM protection, NTC, cable direction, labels, shrink wrap, packaging, and OEM/ODM battery pack assembly.
Additional information
| Product Type | High Voltage Lipo Battery |
|---|---|
| Model number | 702229 |
| Voltage (Nominal) | 3.8V |
| Capacity (Nominal) | 630mAh |

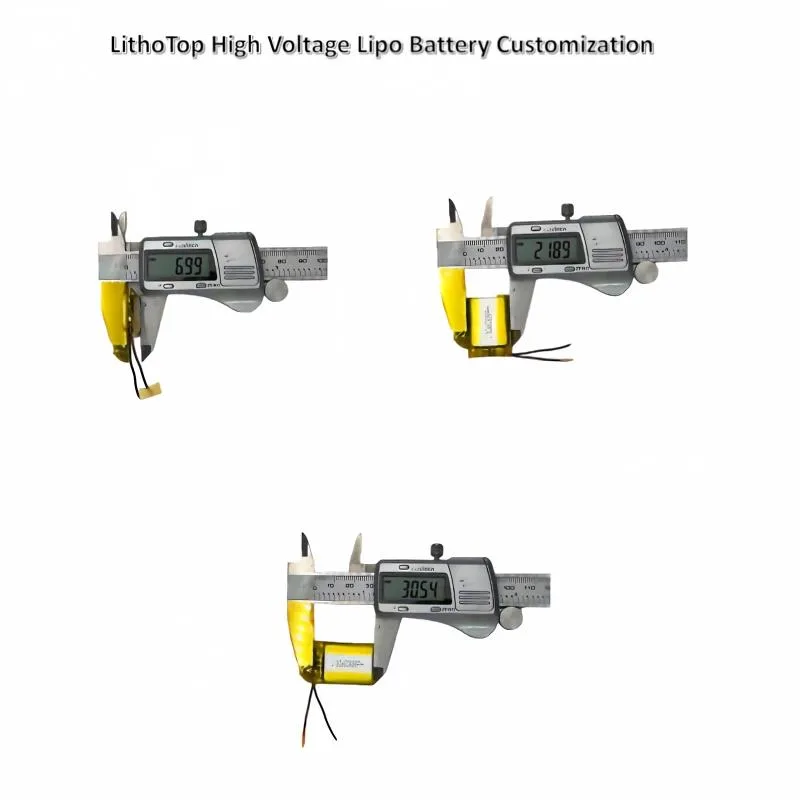

| Dimensions | 7.0±0.2*22±0.5*29±2.5mm |
| Constant Discharge Current | Typically 0.5C-1C |
| Working Temperature | charge: 0-45℃; discharge: -20-60℃ |
Professional Grade A Lipo Battery Solutions
Delivering superior performance consistency and longer cycle life through automated cell matching technology designed for heavy-duty industrial applications.
The 702229 3.8V 630mAh high voltage LiPo battery is engineered for compact devices that need more usable energy than standard 3.7V lithium polymer batteries. The 3.8V high-voltage design supports a higher charging platform, helping improve energy density and extend device runtime without significantly increasing battery size.
With 630mAh capacity, this battery provides stronger endurance than many small 300mAh or 400mAh LiPo batteries while still maintaining a compact pouch cell structure. It is a practical choice for product developers who need longer operating time, stable wireless performance, and reliable rechargeable battery quality.
LithoTop applies strict production control during cell selection, capacity testing, voltage inspection, internal resistance testing, aging verification, appearance checking, and final quality inspection. These processes help ensure stable performance, reliable safety, and consistent mass production quality.
- 3.8V High Voltage Platform
Provides higher energy density compared with standard 3.7V lithium polymer battery designs. - 630mAh Reliable Capacity
Supports longer runtime for compact smart devices and portable electronic products. - 702229 Compact Pouch Cell Structure
Suitable for products with limited internal battery space and slim enclosure requirements. - Stable Voltage Output
Helps support reliable operation for Bluetooth modules, sensors, processors, and wireless systems. - High Energy Density Design
Improves usable energy while helping keep the final product compact and lightweight. - Low Self-Discharge Performance
Supports better standby performance for portable devices and smart electronics. - Strict Quality Inspection
Each battery is checked for voltage, capacity, internal resistance, appearance, and consistency before shipment.
- Smart wearable devices
- Bluetooth audio products
- Portable translators
- Smart tracking devices
- IoT sensor modules
- Electronic badges
- Wireless communication devices
- Portable medical sensors
- Smart home controllers
- Compact rechargeable electronics
3.8V High Voltage Lipo Battery
| Model | Voltage(V) | Capacity(mAh) | Size(T*W*L)mm | Shape |
|---|---|---|---|---|
| 07350V3 | 3.8 | 150 | 7*35 | Cylindrical |
| 302535V3 | 3.8 | 310 | 3*25*35 | Pouch |
| 321255V3 | 3.8 | 220 | 3.2*12*55 | Pouch |
| 332226V3 | 3.8 | 220 | 3.3*22*26 | Pouch |
| 351423V3 | 3.8 | 115 | 3.5*14*23 | Pouch |
| 352028V3 | 3.8 | 220 | 3.5*20*28 | Pouch |
| 381140V3 | 3.8 | 200 | 3.8*11*40 | Pouch |
| 401026V3 | 3.8 | 95 | 4*10*26 | Pouch |
| 402546V3 | 3.8 | 640 | 4*25*46 | Pouch |
| 412527V3 | 3.8 | 320 | 4.1*25*27 | Pouch |
| 421355V3 | 3.8 | 300 | 4.2*13*55 | Pouch |
| 431268V3 | 3.8 | 430 | 4.3*12*68 | Pouch |
| 444271V3 | 3.8 | 2100 | 4.4*42*71 | Pouch |
| 450930V3 | 3.8 | 130 | 4.5*9*30 | Pouch |
| 452328V3 | 3.8 | 330 | 4.5*23*28 | Pouch |
| 462028V3 | 3.8 | 280 | 4.6*20*28 | Pouch |
| 462427V3 | 3.8 | 370 | 4.6*24*27 | Pouch |
| 462428V3 | 3.8 | 400 | 4.6*24*28 | Pouch |
| 502023V3 | 3.8 | 230 | 5*20*23 | Pouch |
| 502530V3 | 3.8 | 450 | 5*25*30 | Pouch |
| 534562V3 | 3.8 | 2350 | 5.3*45*62 | Pouch |
| 582926V3 | 3.8 | 620 | 5.8*29*26 | Pouch |
| 582938V3 | 3.8 | 850 | 5.8*29*38 | Pouch |
| 592830V3 | 3.8 | 750 | 5.9*29*30 | Pouch |
| 601015V3 | 3.8 | 75 | 6*10*15 | Pouch |
| 602227V3 | 3.8 | 380 | 6*22*27 | Pouch |
| 602830V3 | 3.8 | 680 | 6*28*30 | Pouch |
| 603030V3 | 3.8 | 750 | 6*30*30 | Pouch |
| 604048V3 | 3.8 | 1650 | 6*40*48 | Pouch |
| 604347V3 | 3.8 | 1700 | 6*43*47 | Pouch |
| 605050V3 | 3.8 | 2100 | 6*50*50 | Pouch |
| 652831V3 | 3.8 | 800 | 6.5*28*31 | Pouch |
| 654552V3 | 3.8 | 2000 | 6.5*45*52 | Pouch |
| 693572V3 | 3.8 | 2700 | 6.9*35*72 | Pouch |
| 702025V3 | 3.8 | 400 | 7*20*25 | Pouch |
| 704347V3 | 3.8 | 2000 | 7*43*47 | Pouch |
| 755275V3 | 3.8 | 4500 | 7.5*52*75 | Pouch |
| 803763V3 | 3.8 | 2960 | 8*37*63 | Pouch |
| 902523V3 | 3.8 | 500 | 9*25*23 | Pouch |
| 902554V3 | 3.8 | 1600 | 9*25*54 | Pouch |
| 902624V3 | 3.8 | 620 | 9*26*24 | Pouch |
| 902628V3 | 3.8 | 850 | 9*26*28 | Pouch |
| 104357V3 | 3.8 | 3500 | 10*43*57 | Pouch |
| 123258V3 | 3.8 | 2800 | 12*32*58 | Pouch |
*Contact us for more Li-Po batteries or customize your special battery!
Customer Development Story
Discover how we helps global customers solve real-world battery challenges through customized lithium battery solutions.
01 – Portable Translator Project from Japan
A Japanese consumer electronics company was developing a compact portable translator for business travel and education users. The device required stable power for a display, microphone, speaker, wireless communication module, and real-time translation processor. Their previous battery met the size requirement, but the runtime was not long enough for full-day travel use.
The customer contacted LithoTop because they needed a higher energy density battery solution without redesigning the product housing. LithoTop reviewed the translator’s standby current, audio playback load, wireless transmission peak, charging circuit, enclosure space, and target operating time.
After evaluation, LithoTop recommended the 702229 3.8V 630mAh High Voltage LiPo Battery. Our engineering team judged that the 3.8V high-voltage platform could provide more usable energy than a standard 3.7V battery, while the 630mAh capacity offered a strong balance between runtime and compact product design.
During sample development, LithoTop optimized the connector type, wire length, cable outlet direction, PCM protection option, and battery label to match the customer’s assembly process. Sample testing included capacity verification, audio operation simulation, wireless transmission testing, charging compatibility checking, temperature monitoring, and installation fit verification.
Before mass production, both teams confirmed samples, battery dimensions, connector specifications, charging requirements, labeling details, and batch inspection standards. The final battery solution helped the translator achieve longer working time and more stable power behavior during real use. For the customer, this improved user experience, reduced redesign pressure, and supported a smoother product launch.
02 – Smart Wearable Audio Device Project from Spain
A Spanish wearable electronics company was developing a smart wearable audio device for sports and outdoor users. The product needed to support Bluetooth connection, audio playback, voice interaction, and standby operation while remaining lightweight and comfortable to wear. Their previous standard LiPo battery caused runtime limitations during continuous audio testing.
The customer approached LithoTop because they needed a compact high voltage LiPo battery that could improve runtime without making the wearable product thicker or heavier. LithoTop analyzed the device’s Bluetooth current profile, speaker load, voice wake-up frequency, charging method, battery compartment tolerance, and cable routing requirement.
Based on this analysis, LithoTop recommended the 702229 3.8V 630mAh high voltage LiPo battery. The 630mAh capacity supported longer audio operation, while the 3.8V high-voltage chemistry helped improve available energy inside the limited space. LithoTop also suggested optimizing the cable outlet direction to simplify assembly and reduce wire bending stress.
During prototype development, sample batteries were tested through continuous Bluetooth playback, voice activation simulation, voltage stability checking, charge-discharge cycling, storage testing, and installation fit evaluation. The customer confirmed that the battery provided more stable runtime during real usage simulation.
Before mass production, the customer approved the final sample, connector durability, electrical performance, packaging method, and incoming inspection standard. LithoTop then controlled production according to the confirmed golden sample.
The final battery solution helped the wearable audio device achieve longer use time and fewer low-power interruptions. For the customer, this improved product reliability, strengthened user satisfaction, and made the device more competitive in the smart wearable market.
Why Choose LithoTop for High Voltage LiPo Battery Solutions?
Factory Support
High voltage LiPo batteries require more than a higher nominal voltage. To achieve reliable performance, the battery must control material stability, voltage consistency, internal resistance, thickness tolerance, cycle performance, charging compatibility, and protection circuit design.
LithoTop supports customers from sample development to mass production with professional engineering support and strict quality inspection. Our team can help evaluate battery size, runtime target, charging voltage, working current, connector type, PCM design, NTC requirement, and real application conditions before confirming the final battery solution.
More Customer Cooperation Cases
Powering leading batteries across wearables, medical devices, IoT, and consumer electronics in 30+ countries..
VR & AR Headset
A European VR headset manufacturer needed a lightweight battery with high energy density and customized dimensions. LithoTop developed a compact LiPo solution that extended operating time while fitting the device's limited internal space.
Portable Medical Monitor
A healthcare equipment company required a safe and reliable battery for a portable medical monitor. LithoTop engineered a custom LiPo battery with stable performance, long cycle life, and compact dimensions for mobile healthcare applications.
Portable Translator
A portable translator manufacturer needed a compact battery and long operating time. LithoTop engineered a customized LiPo battery that provided stable power, lightweight design, and reliable performance for AI-powered language translation devices.
Handling Precautions & Guidelines
Find answers to the most common questions about ordering, shipping, certifications, and working with lithotop as your battery partner.
Engineer’s will make inner BOM according to your confirmed samples. And our quality control teams continuously monitor the entire manufacturing process to ensure the each mass production is the same as samples.
LithoTop specializes in custom lithium battery solutions, including LiPo batteries, Li-ion battery packs, LiFePO4 batteries, high-rate drone batteries, curved batteries, ultra-thin batteries, and custom rechargeable battery packs for industrial and consumer applications.
LithoTop focuses on:Custom battery solutions for special applications, own developed PCB/PCM to help you with Competitive factory-direct pricing, Experience with difficult battery projects such as curved, ultra-thin, and high-discharge batteries. Long-term cooperation support for startups and established brands.
Yes. LithoTop provides fully customized battery solutions based on your device requirements, including voltage, capacity, discharge rate, dimensions, connector type, PCM/BMS protection, and special shapes such as curved or ultra-thin batteries.
Standard samples are usually available quickly about 3-7 days, while custom battery projects typically require evaluation, engineering confirmation, prototyping, and testing. The timeline depends on battery specifications, and certification requirements. Mass order is about 30 working days.
Depending on the product and project requirements, LithoTop batteries can support certifications including UN38.3, MSDS, CE, RoHS, IEC62133, UL , and other transportation or safety compliance documents.
MOQ depends on the battery model and customization level. Standard batteries may support lower quantities like 100pcs, while fully customized battery projects usually require a development MOQ. LithoTop supports both prototype projects and mass production orders.
LithoTop follows strict quality control procedures including:Incoming material inspection, Cell matching and grading Capacity, and voltage testing, Aging and performance tests, 100% Safety inspections before shipment.Quality consistency is critical for battery reliability and long-term cooperation.
Normally, we ship our batteries via DHL, UPS, FedEx, air freight, or sea , depending on order size, destination, and customer preference.
Yes. High voltage LiPo batteries usually require a compatible high-voltage charging circuit, such as a 4.35V/4.4V charging platform. The charging design should be confirmed before sample testing and mass production.
