Custom 21700 Solutions for Business Growth | Stop Returns & Scale Profit

Stop losing revenue on 21700 overheating and casing damage. Build industrial certainty with a partner ensuring thermal safety and flexible logistics.

✅ High-Drain Stability: Under 5mΩ matching prevents thermal runaway.

✅ Shield Device Integrity: 0.5mm gap stops 21700 expansion cracks.

✅ Bypass Shipping Delays: MSDS provided, flexible UN38.3 delivery support.

Get A Factory Quote(Response in 12h)
View Our Work

Why More Engineers Choose 21700 Battery Packs

21700 cells provide higher capacity and better energy density in a larger cylindrical format. This makes them ideal for B2B applications that require longer runtime, higher power output, and fewer cells in the same battery system.

Casing Stress Fractures

Neglecting 0.5mm expansion gaps causes 21700 swelling to crack device enclosures.

The Capacity Trap

Unmatched resistance triggers premature BMS shutdown, wasting 30% usable capacity.

Thermal Failure Risks

Unmatched cells create hot spots, triggering emergency thermal shutdowns mid-operation.

Strict protocol enforces 5mV voltage gaps, under 5mΩ resistance limits, and mandatory 0.5mm thermal expansion clearance.

Select Your 21700 Cell Performance Tier

Different 21700 cells are designed for different project priorities. LithoTop helps customers select the right cell based on runtime, discharge current, cost target, certification, and long-term supply stability.

Application ScenariosCritical MetricEngineering Safeguard (The Hedge)
High Torque Robotics AGV / Industrial AMR50A Peak PulseReinforced laser-welded busbars + Under 5mΩ IR matching to prevent joint melting.
Precision Medical Monitors Portable Surgical Equipment5mV Balancing LogicGenuine Seiko IC Hardware BMS ensures accurate fuel gauging and zero unannounced shutdowns.
Industrial E-Mobility Heavy Duty Cargo E-Bikes30A Continuous CurrentMandatory 0.5mm expansion gap factoring in cell growth to shield device casing integrity.
Factory Directive

Avoid generic "blue-wrap" 21700 assemblies. Without the mandatory 0.5mm thermal clearance, the combined force of cell swelling will crack expensive device screens during fast-charge cycles.

Cell TierCapacity RangeBest ForSelection Focus
Standard Capacity 217004000–4500mAhIndustrial electronics and handheld devicesStable supply and cost control
High Capacity 217004800–5800mAhRobots, medical devices, and backup power projectsLonger runtime and higher energy density
High Drain 217003000–4500mAhPower tools, AGVs, and high-load devicesStronger discharge capability
Long Cycle 217004000–5000mAhIndustrial fleet devices and backup systemsLonger service life and stable aging
Branded Cell OptionSamsung / LG / EVE / MolicelPremium B2B projectsCertification, consistency, and long-term supply planning

21700 Battery Pack Application Scenarios

21700 lithium-ion battery packs are widely used in products that require a balance of high capacity, discharge capability, thermal safety, and long-term reliability.

Industrial Robots & AGVs

Custom 21700 packs support mobile robots, AGV, AMRs, warehouse automation systems, inspection robots, and service robots that require stable high-power output.

E-Mobility & Light Electric Vehicles

21700 battery packs are suitable for cargo e-bikes, scooters, mobility devices, and compact electric platforms requiring higher energy and continuous current support.

Medical Device & Backup Systems

Used in portable medical equipment, emergency backup modules, monitoring devices, and mobile healthcare systems where safety and stable supply are critical.

Custom 21700 Battery Pack Configurations

LithoTop can design 21700 battery packs based on your required voltage, capacity, discharge current, charging system, battery compartment, wire outlet, connector, BMS, and certification requirements.

Li Ion Grade A Cell

Storage Readiness Safety

Seiko IC hardware stops 21700 "sleep-mode death" during extended shelving for emergency medical backup power.
Li Ion Battery BMS

High Torque Delivery

Calibrated 50A pulse logic blocks voltage sag during rapid multi-axis maneuvers in industrial AGV robotics.
Li Ion Battery Connector

Extreme Thermal Management

Thermal-conductive potting prevents 21700 overheating during continuous 30A uphill climbs in heavy-duty mobility applications.
Configuration TypeCommon ExamplesBest For
1S 21700 Battery Pack3.6V / 4000–5800mAhHandheld devices, sensors, compact electronics
2S 21700 Battery Pack7.2V / 4000mAh–20Ah+Medical devices, portable equipment, scanners
3S 21700 Battery Pack10.8V / 4000mAh–30Ah+Robotics, instruments, smart terminals
4S 21700 Battery Pack14.4V / 4000mAh–40Ah+Industrial equipment, tools, mobile devices
5S–7S 21700 Battery Pack18V–25.2VServo systems, AGVs, inspection equipment
10S–13S 21700 Battery Pack36V–48VE-mobility, backup power, portable energy systems
14S–25S 21700 Battery Pack50.4V–90V+Industrial power systems and custom high-voltage packs

Proven Custom Battery Projects

We turn complex power needs into safe and working hardware. Look at our real builds to see how we protect projects from failure with smart engineering.

LG21700-3S1P 11.1V 5800mAh
LG21700-3S1P 11.1V 5800mAh
21700 High Power Li-ion Battery
21700 High Power Li-ion Battery
21.6V-10000mAh
21.6V-10000mAh (Samaung)
rechargeable 21700 5000mAh Battery
rechargeable 21700 5000mAh Battery

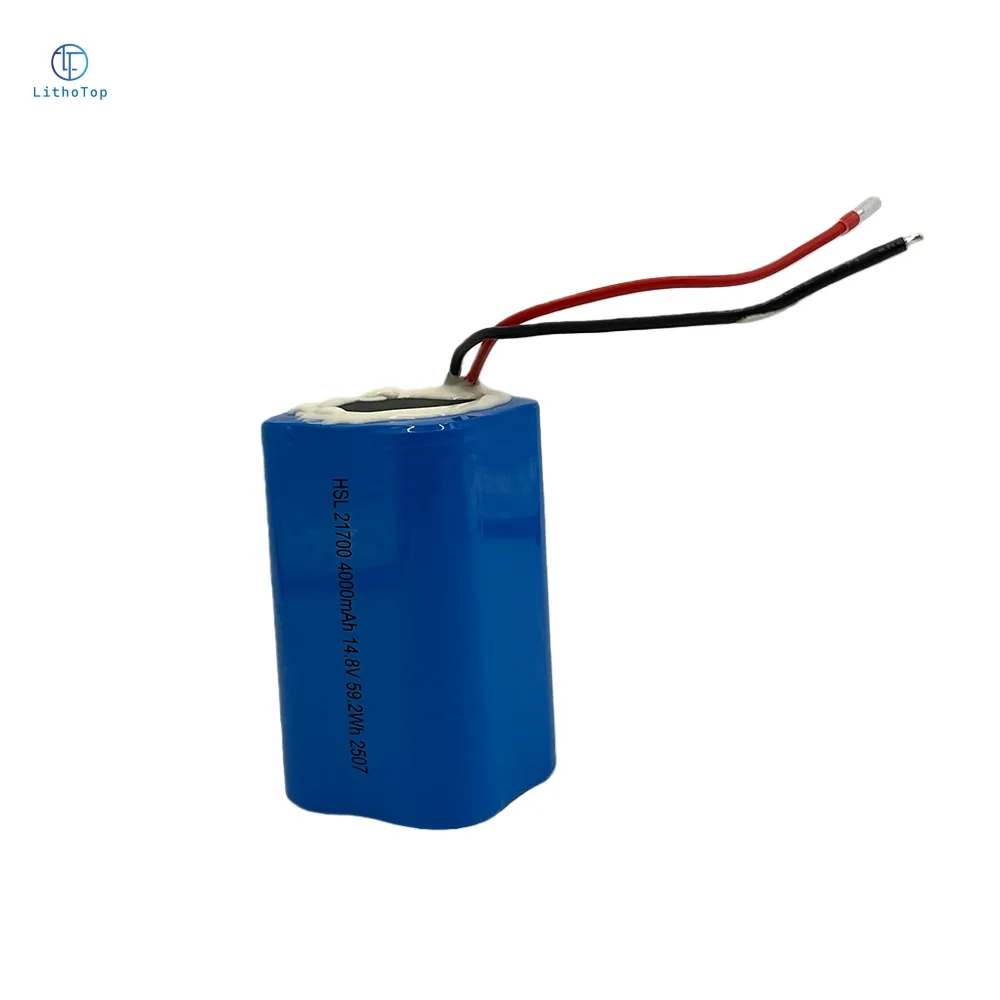

21700 4000mAh rechargeable battery
21700 4000mAh rechargeable battery

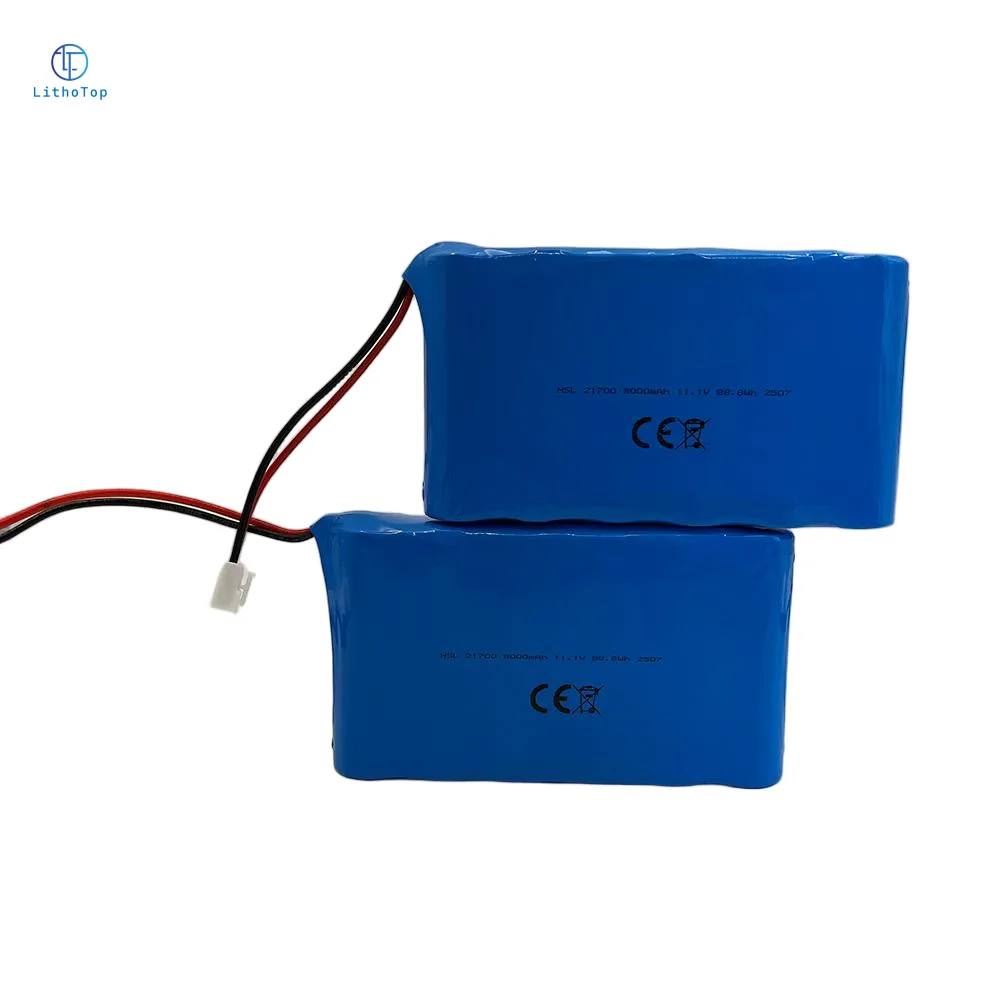

21700 11.1V 8000mAh battery
21700 11.1V 8000mAh battery
Start My Project

Custom 21700 Lithium-Ion Battery Pack Solutions

Built with premium Grade A cells and our self-developed BMS technology, our battery packs are fully customizable for voltage, capacity, connectors, communication protocols, and housing, making them ideal for robotics, AGVs, medical devices, energy storage, e-mobility, and industrial applications.

The Anatomy of a Safe 21700 Battery Pack

From cell selection to final shipment, each detail affects pack safety, cycle life, thermal behavior, and long-term reliability.

21700 Battery Production 1

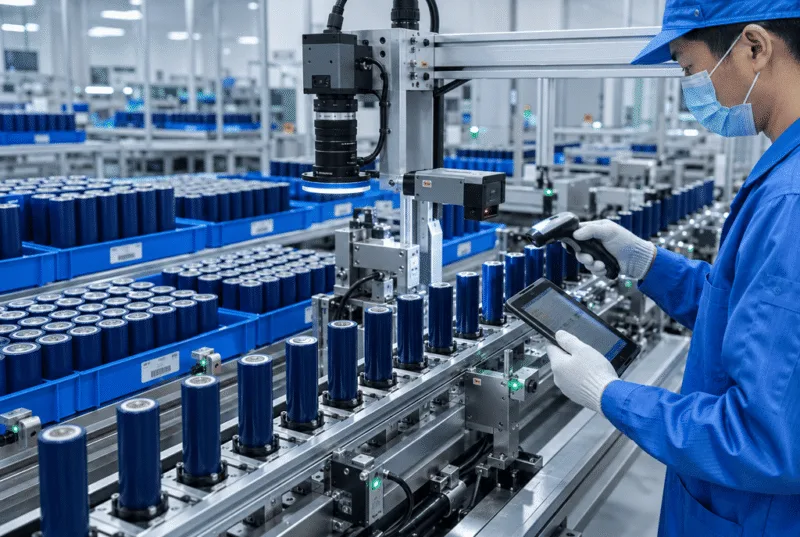

Step 1: Grade A 21700 Cell Selection

  • Fresh Grade A Cells — Verified capacity, voltage, internal resistance, and supplier traceability.
  • No Mixed-Batch Risk — Helps avoid unstable performance, overheating, and shortened service life.

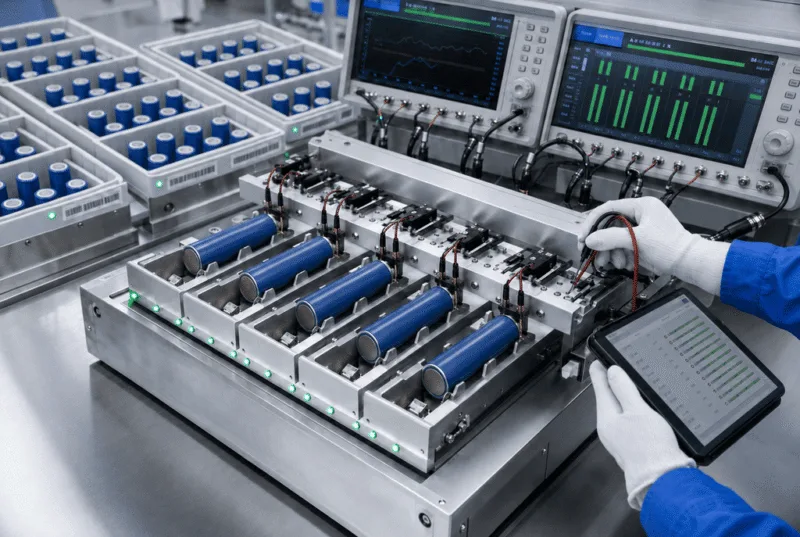

Step 2: OCV / IR Matching

  • Voltage Matching — Reduces cell imbalance and helps the pack discharge more evenly.
  • IR Screening — Helps reduce heat buildup and improves high-current consistency.
21700 Battery Production 2
21700 Battery Production 3

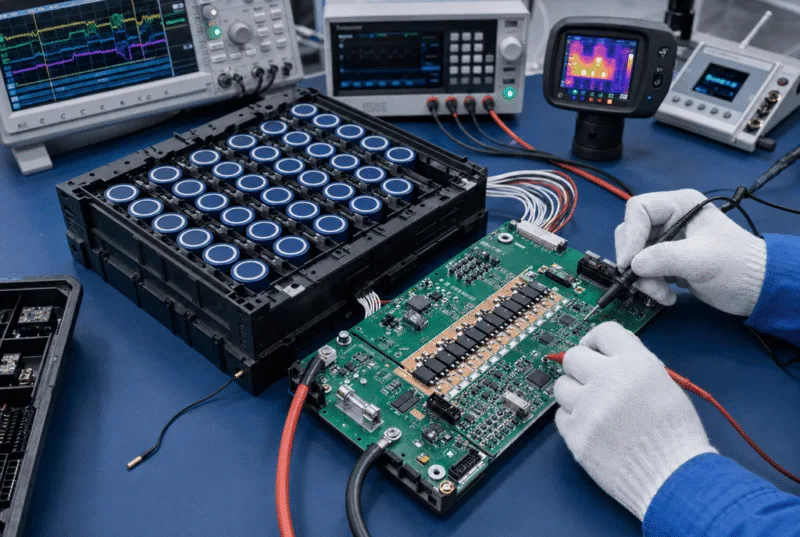

Step 3: BMS Protection Design

  • Core Protection — OVP, UVP, OCP, SCP, OTP, NTC, and balancing can be customized.
  • Smart Functions Optional — SMBus, RS232&RS485, UART, CAN, and Bluetooth can be evaluated by project.

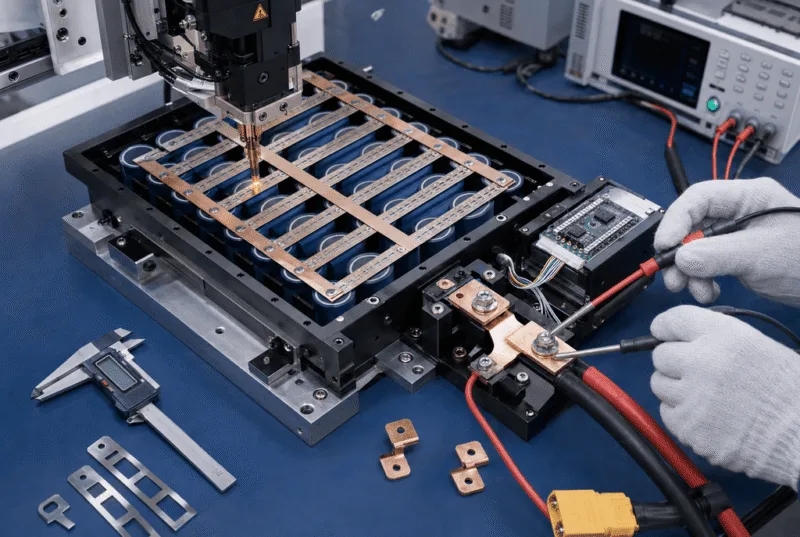

Step 4: Welding & Current Path Design

  • Reinforced Connection — Nickel strips, busbars, and reliable welding reduce resistance and voltage drop.
  • High-Current Layout — Wire gauge, connector, and BMS rating are selected according to real load current.
21700 Battery Production 4
21700 Battery Production 5

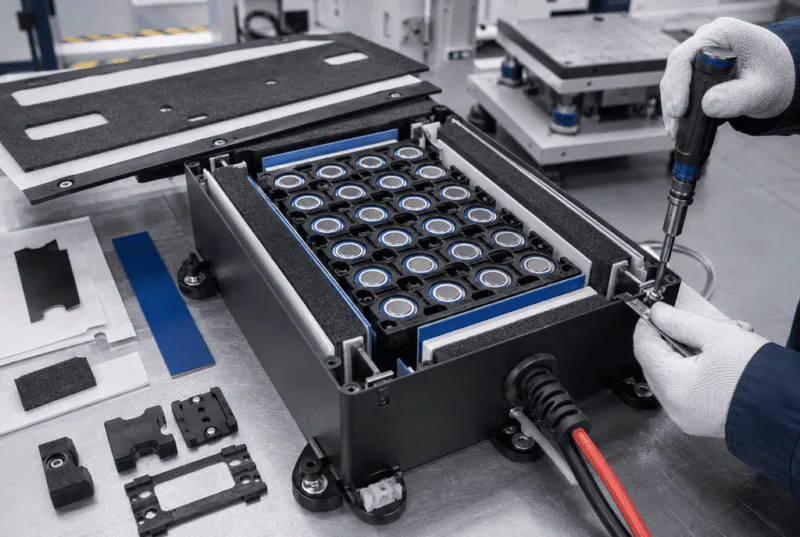

Step 5: Expansion Gap & Mechanical Protection

  • Proper Space Planning — Space is reserved for insulation, PVC, brackets, casing, wire outlet, and expansion tolerance.
  • Safer Assembly — Mechanical protection helps reduce vibration failure, casing stress, and short-circuit risk.

Avoiding Common 21700 Battery Pack Mistakes

Many 21700 battery pack problems start from early design decisions. LithoTop helps customers avoid poor layout, thermal risk, weak cell matching, and undersized output design.

• COMMON MISTAKE: SPACE REDESIGN

Mistake 1: Upgrading from 18650 Without Redesigning Space

21700 cells are larger than 18650 cells. Direct replacement without checking compartment space may cause assembly failure, casing stress, or poor heat dissipation.

• COMMON MISTAKE: THERMAL MANAGEMENT

Mistake 2: Ignoring Thermal Management

Higher energy density means more energy is concentrated in each cell. Poor heat design may cause overheating, BMS shutdown, or shorter service life.

• COMMON MISTAKE: CELL SELECTION

Mistake 3: Choosing Cells Only by Capacity

The highest capacity cell is not always the best option. High-current devices may require lower internal resistance and stronger discharge capability.

• COMMON MISTAKE: LOOSE OCV / IR MATCHING

Mistake 4: Using Loose OCV / IR Matching

Unmatched 21700 cells may create hot spots, uneven aging, and premature pack failure.

• COMMON MISTAKE: UNDERSIZED OUTPUT DESIGN

Mistake 5: Using an Undersized BMS or Connector

The BMS, connector, nickel strip, and wire gauge must match the real load current. Otherwise, the pack may overheat or trigger protection shutdown.

Secured Global Shipping

Customs seizures destroy project timelines. Strategic 21700 logistics and compliance audits bypass port delays for immediate entry into major North American and South Korean markets.

Regulatory Compliance Support

MSDS provided with verified UN38.3 application assistance. Safe global delivery is ensured for every 21700 batch, regardless of current certification status.

Expert Logistics Navigation

Specialized Class 9 logistics navigation handles specific port requirements in USA, EU, and South Korea to ensure on-time 21700 pack arrival.

21700 Battery Pack Manufacturing Standards

LithoTop controls every key manufacturing step to ensure consistent quality, safe pack assembly, and reliable B2B project delivery.

OEM / ODM Customization

Custom 21700 Battery Pack OEM/ODM Options

LithoTop provides flexible OEM/ODM 21700 battery pack customization for customers who need specific voltage, capacity, discharge current, size, connector, casing, charger, and safety design.

Our engineering team can support your project from early battery layout evaluation to sample production, testing, documentation, and mass production.

  • Cell brand and capacity
  • Samsung, LG, EVE, Molicel, or equivalent cell options
  • Series and parallel configuration
  • Pack voltage and capacity
  • Continuous discharge current and peak current
  • PCM / BMS protection
  • Cell balancing function
  • NTC thermistor
  • Wire gauge and wire length
  • JST, Molex, XT30, XT60, DC plug, aviation plug, or custom connector
  • PVC wrap, plastic case, metal case, bracket, or custom housing
  • Laser welding, nickel strip, or busbar design
  • Charger matching support
  • UN38.3 / MSDS / IEC62133 / CE / RoHS documentation support

Proven Global Technical Battery Performance

Real-world technical feedback from lead engineers who moved mission-critical 21700 deployments from mechanical failure to long-term operational success.

"Standard spot-welded packs fractured under 20G robotics vibration cycles. Transitioning to LithoTop automated laser-welded busbars with 0.15mm pure nickel tabs eliminated mechanical disconnects across our entire 300-unit European fleet instantly."
David Miller
Head of Hardware
"South Korean market entry stalled at Busan customs due to missing cell-level data. They provided a pre-certified KC database and direct lab coordination, clearing 5,000 medical 21700 packs for immediate distribution within 72 hours."
Sophia Chen
R&D Lead
"High-drain thermal expansion cracked our original enclosures during 30A mountain climbs. They engineered a mandatory 0.5mm expansion gap and fire-retardant brackets, stopping all casing fractures across our industrial cargo e-bikes."
Sarah J. Thompson
Operations Manager

Our Expertise in Action

How to build my own LiPo charging circuit?

How to build my own LiPo charging circuit?

The Biggest Mistake When Choosing a UAV Battery Supplier?

The Biggest Mistake When Choosing a UAV Battery Supplier?

Have a Question?

FAQ

Get clear technical answers to stop production risks and protect your project.

Absolutely. Specialized Class 9 logistics channels handle safe delivery to major global ports regardless of current certification status. Necessary MSDS and shipping documentation accompany every 21700 batch to keep project timelines moving.
Yes. Automated OCV and IR data logs provide physical verification for every cell. Matching resistance within 5mΩ limits ensures synchronized discharge cycles and prevents localized hotspots in high-drain 21700 assemblies.
Absolutely. Submit the 3D enclosure STEP files for review. A custom 21700 array blueprint factoring in the mandatory 0.5mm expansion gap and thermal dissipation zones arrives within 24 hours.
Yes. Strategic automated laser welding severs the risk of joint fractures. Utilizing 0.2mm pure nickel tabs handles sustained 30A current loads and extreme mechanical vibration common in industrial robotics.
No. Prototyping phases bypass mass-production MOQs entirely. Small-batch 21700 assemblies enable full electrical field testing and thermal validation before committing to inventory scaling.
Yes. Annual supply agreements are supported to lock in material costs and protect profit margins from lithium market swings. LithoTop acts as a stable production arm for long-term fleet deployment.

Audit Your Power Designs

Transition from quote requests to rigorous technical feasibility auditing.

Submit STEP files and peak discharge requirements for immediate technical review. Custom 21700 array configurations factoring in mandatory 0.5mm expansion tolerances arrive within 12 hours.
