Blood pressure monitors have become essential medical devices for home healthcare, hospitals, clinics, telemedicine, and wearable health monitoring systems. Modern digital blood pressure monitors rely on accurate electronic sensors, wireless communication, and low-power control systems, making battery performance a key factor in measurement reliability and user experience.
Compared with conventional consumer electronics, blood pressure monitors require batteries that provide stable voltage, long service life, compact dimensions, and excellent safety performance. Whether designed for portable home-use monitors or wearable blood pressure monitoring devices, the battery must deliver dependable power while maintaining lightweight and ergonomic product designs.
LithoTop provides customized lithium battery solutions for blood pressure monitor manufacturers, supporting rechargeable LiPo batteries, ultra-thin batteries, Li-MnO₂ primary batteries, and custom battery packs for medical applications.
Challenges of Blood Pressure Monitor Battery Design
Stable Measurement Performance
Blood pressure monitors require stable voltage to ensure accurate pressure sensing and reliable electronic measurements.
- Stable voltage output
- Consistent discharge performance
- Low internal resistance
- Reliable power supply
Compact Device Design
Modern blood pressure monitors are becoming smaller and more portable.
- Compact batteries
- Lightweight construction
- Flexible battery integration
- Custom dimensions
Long Battery Life
Medical devices are expected to operate reliably for extended periods with minimal maintenance.
- Long runtime
- Low self-discharge
- Long storage life
- High cycle life
Safety and Medical Reliability
Medical devices demand exceptional battery safety and production consistency.
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Temperature monitoring
- Grade-A battery cells
- 100% quality inspection
LithoTop Battery Solutions for Blood Pressure Monitors
Ultra-Small LiPo Batteries
- Compact size
- Lightweight design
- High energy density
- Rechargeable
- Long cycle life
Ultra-Thin LiPo Batteries
- Thickness from 1.0mm
- Lightweight construction
- Easy wearable integration
- Stable discharge
- Custom dimensions
Li-MnO₂ Primary Batteries
- Long shelf life
- Stable voltage
- Low self-discharge
- Reliable performance
- Wide operating temperature
Blood Pressure Monitor Battery Features
- Stable voltage output
- High energy density
- Compact dimensions
- Lightweight construction
- Long shelf life
- Low self-discharge
- Excellent medical reliability
- Optional PCM protection
- Optional NTC integration
- OEM & ODM customization
Typical Battery Specifications for Blood Pressure Monitors
| Parameter | Typical Range |
|---|---|
| Voltage | 3.0V / 3.7V / 3.85V |
| Capacity | 100mAh – 5000mAh |
| Battery Type | LiPo / Li-MnO₂ |
| Shape | Standard / Ultra-Thin / Custom |
| Thickness | 1.0mm – 8.0mm |
| Protection | PCM Optional |
| Temperature Sensor | NTC Optional |
| Cycle Life | 300–500 Cycles |
| Certifications | UN38.3 / IEC62133 / CE / RoHS / MSDS |
Why Blood Pressure Monitor Manufacturers Choose LithoTop
- Grade-A lithium battery cells
- Ultra-thin battery development
- Ultra-small battery customization
- In-house PCM design
- Medical battery manufacturing experience
- Fast prototype development
- OEM & ODM production
- 100% inspection
- Global certification support
Please feel free to contact us for more information and customized battery solutions for your project.
LithoTop specializes in ultra-small lithium polymer (LiPo) battery solutions for compact electronic devices where every millimeter of space matters. Our ultra-small batteries are widely used in wearable electronics, Bluetooth earbuds, smart rings, medical devices, IoT sensors, and other miniature applications.
With extensive OEM and ODM experience, LithoTop offers customized battery dimensions, capacities, wire lengths, connectors, PCM protection circuits, and packaging solutions to meet the unique requirements of each project. Our engineering team helps maximize battery performance while maintaining an extremely compact footprint.
- Ultra-compact design for miniature electronic devices
- High energy density with optimized internal structure
- Lightweight construction for wearable applications
- Stable voltage output and long cycle life
- Custom sizes, connectors, wires and PCM available
- Grade-A lithium polymer cells with 100% inspection
Ultra-Small LiPo Batteries List
| Model | Voltage(V) | Capacity(mAh) | Cell Size(T*W*L)mm | Shape |
|---|---|---|---|---|
| 500830 | 3.7 | 110 | 5*8*30 | Pouch |
| 500922 | 3.7 | 65 | 5*9*22 | Pouch |
| 500935 | 3.7 | 130 | 5*9*35 | Pouch |
| 501010 | 3.7 | 35 | 5*10*10 | Pouch |
| 501012 | 3.7 | 40 | 5*10*12 | Pouch |
| 501015 | 3.7 | 50 | 5*10*15 | Pouch |
| 501030 | 3.7 | 120 | 5*10*30 | Pouch |
| 501035 | 3.7 | 130 | 5*10*35 | Pouch |
| 501038 | 3.7 | 160 | 5*10*38 | Pouch |
| 501040 | 3.7 | 180 | 5*10*40 | Pouch |
| 501114 | 3.7 | 50 | 5*11*14 | Pouch |
| 501120 | 3.7 | 100 | 5*11*20 | Pouch |
| 501130 | 3.7 | 150 | 5*11*30 | Pouch |
| 501145 | 3.7 | 250 | 5*11*45 | Pouch |
| 501215 | 3.7 | 60 | 5*12*15 | Pouch |
| 501220 | 3.7 | 100 | 5*12*20 | Pouch |
| 501225 | 3.7 | 120 | 5*12*25 | Pouch |
| 501228 | 3.7 | 150 | 5*12*28 | Pouch |
| 501230 | 3.7 | 130 | 5*12*30 | Pouch |
| 501235 | 3.7 | 150 | 5*12*35 | Pouch |
| 501240 | 3.7 | 200 | 5*12*40 | Pouch |
| 501245 | 3.7 | 260 | 5*12*45 | Pouch |
| 501314 | 3.7 | 65 | 5*13*14 | Pouch |
| 501321 | 3.7 | 105 | 5*13*21 | Pouch |
| 501323 | 3.7 | 120 | 5*13*23 | Pouch |
| 501332 | 3.7 | 170 | 5*13*32 | Pouch |
| 501420 | 3.7 | 95 | 5*14*20 | Pouch |
| 501447 | 3.7 | 280 | 5*14*47 | Pouch |
| 501515 | 3.7 | 80 | 5*15*15 | Pouch |
| 501520 | 3.7 | 125 | 5*15*20 | Pouch |
| 501522 | 3.7 | 130 | 5*15*22 | Pouch |
| 501524 | 3.7 | 170 | 5*15*24 | Pouch |
| 501530 | 3.7 | 200 | 5*15*30 | Pouch |
| 501535 | 3.7 | 240 | 5*15*35 | Pouch |
| 501622 | 3.7 | 140 | 5*16*22 | Pouch |
| 501645 | 3.7 | 340 | 5*16*45 | Pouch |
| 501723 | 3.7 | 160 | 5*17*23 | Pouch |
| 501725 | 3.8 | 230 | 5*17*25 | Pouch |
| 501730 | 3.7 | 200 | 5*17*30 | Pouch |
| 501735 | 3.7 | 300 | 5*17*35 | Pouch |
| 501818 | 3.7 | 150 | 5*18*18 | Pouch |
| 501825 | 3.7 | 180 | 5*18*25 | Pouch |
| 501880 | 3.7 | 300 | 5*18*80 | Pouch |
| 502020 | 3.7 | 150 | 5*20*20 | Pouch |
| 502025 | 3.7 | 200 | 5*20*25 | Pouch |
| 502028 | 3.7 | 250 | 5*20*28 | Pouch |
| 502030 | 3.7 | 320 | 5*20*30 | Pouch |
| 502035 | 3.7 | 350 | 5*20*35 | Pouch |
| 502035 | 3.8 | 400 | 5*20*35 | Pouch |
| 502040 | 3.7 | 400 | 5*20*40 | Pouch |
| 502045 | 3.7 | 450 | 5*20*45 | Pouch |
| 502050 | 3.7 | 500 | 5*20*50 | Pouch |
| 502060 | 3.7 | 600 | 5*20*60 | Pouch |
| 502065 | 3.7 | 700 | 5*20*65 | Pouch |
| 502080 | 3.7 | 900 | 5*20*80 | Pouch |
| 502235 | 3.7 | 365 | 5*22*35 | Pouch |
| 502243 | 3.7 | 460 | 5*22*43 | Pouch |
| 502248 | 3.7 | 520 | 5*22*48 | Pouch |
| 502260 | 3.7 | 600 | 5*22*60 | Pouch |
| 502270 | 3.7 | 900 | 5*22*70 | Pouch |
| 502325 | 3.7 | 260 | 5*23*25 | Pouch |
| 502525 | 3.7 | 300 | 5*25*25 | Pouch |
| 502530 | 3.7 | 350 | 5*25*30 | Pouch |
| 502535 | 3.7 | 450 | 5*25*35 | Pouch |
| 502540 | 3.7 | 500 | 5*25*40 | Pouch |
| 502560 | 3.7 | 900 | 5*25*60 | Pouch |
| 502728 | 3.7 | 400 | 5*27*28 | Pouch |
| 502828 | 3.8 | 500 | 5*28*28 | Pouch |
| 503030 | 3.7 | 400 | 5*30*30 | Pouch |
| 503035 | 3.7 | 520 | 5*30*35 | Pouch |
| 503040 | 3.7 | 600 | 5*30*40 | Pouch |
| 503048 | 3.7 | 750 | 5*30*48 | Pouch |
| 503065 | 3.7 | 1200 | 5*30*65 | Pouch |
| 503450 | 3.7 | 1000 | 5*34*50 | Pouch |
| 503560 | 3.7 | 1200 | 5*35*60 | Pouch |
| 503759 | 3.7 | 1200 | 5*37*59 | Pouch |
| 504045 | 3.7 | 900 | 5*40*45 | Pouch |
| 504065 | 3.7 | 1500 | 5*40*65 | Pouch |
| 504070 | 3.7 | 1200 | 5*40*70 | Pouch |
| 505050 | 3.7 | 1500 | 5*50*50 | Pouch |
| 505060 | 3.7 | 2000 | 5*50*60 | Pouch |
| 505080 | 3.7 | 2200 | 5*50*80 | Pouch |
| 5050100 | 3.7 | 4000 | 5*50*100 | Pouch |
| 505573 | 3.7 | 2500 | 5*55*73 | Pouch |
| 506090 | 3.7 | 3000 | 5*60*90 | Pouch |
| 521012 | 3.7 | 45 | 5.2*10*12 | Pouch |
| 521220 | 3.7 | 90 | 5.2*12*20 | Pouch |
| 521417 | 3.7 | 100 | 5.2*14*17 | Pouch |
| 521525 | 3.7 | 170 | 5.2*15*25 | Pouch |
| 522030 | 3.7 | 280 | 5.2*20*30 | Pouch |
| 522035 | 3.8 | 400 | 5.2*20*35 | Pouch |
| 522540 | 3.8 | 680 | 5.2*25*40 | Pouch |
| 522830 | 3.8 | 560 | 5.2*28*30 | Pouch |
| 523450 | 3.8 | 1250 | 5.2*34*50 | Pouch |
| 531525 | 3.7 | 180 | 5.3*15*25 | Pouch |
| 551015 | 3.7 | 55 | 5.5*10*15 | Pouch |
| 551045 | 3.7 | 250 | 5.5*10*45 | Pouch |
| 551220 | 3.7 | 110 | 5.5*12*20 | Pouch |
| 551225 | 3.7 | 160 | 5.5*12*25 | Pouch |
| 551235 | 3.7 | 180 | 5.5*12*35 | Pouch |
| 551240 | 3.7 | 230 | 5.5*12*40 | Pouch |
| 551245 | 3.7 | 250 | 5.5*12*45 | Pouch |
| 551520 | 3.7 | 150 | 5.5*15*20 | Pouch |
| 551525 | 3.7 | 180 | 5.5*15*25 | Pouch |
| 551535 | 3.7 | 240 | 5.5*15*35 | Pouch |
| 551730 | 3.7 | 220 | 5.5*17*30 | Pouch |
| 551735 | 3.7 | 320 | 5.5*17*35 | Pouch |
| 552035 | 3.7 | 350 | 5.5*20*35 | Pouch |
| 552040 | 3.7 | 400 | 5.5*20*40 | Pouch |
| 552065 | 3.7 | 800 | 5.5*20*65 | Pouch |
| 552225 | 3.7 | 250 | 5.5*22*25 | Pouch |
| 552230 | 3.7 | 320 | 5.5*22*30 | Pouch |
| 552240 | 3.7 | 400 | 5.5*22*40 | Pouch |
| 552248 | 3.7 | 600 | 5.5*22*48 | Pouch |
| 552530 | 3.7 | 350 | 5.5*25*30 | Pouch |
| 552535 | 3.7 | 450 | 5.5*25*35 | Pouch |
| 552548 | 3.7 | 600 | 5.5*25*48 | Pouch |
| 552728 | 3.7 | 400 | 5.5*27*28 | Pouch |
| 553035 | 3.7 | 600 | 5.5*30*35 | Pouch |
| 552530 | 3.7 | 350 | 5.5*25*30 | Pouch |
| 552548 | 3.7 | 700 | 5.5*25*48 | Pouch |
| 552728 | 3.7 | 400 | 5.5*27*28 | Pouch |
| 553035 | 3.7 | 600 | 5.5*30*35 | Pouch |
| 555056 | 3.7 | 2100 | 5.5*50*56 | Pouch |
| 555075 | 3.7 | 2500 | 5.5*55*75 | Pouch |
| 5565113 | 3.7 | 5000 | 5.5*65*113 | Pouch |
| 581015 | 3.7 | 60 | 5.8*10*15 | Pouch |
| 581525 | 3.7 | 180 | 5.8*15*25 | Pouch |
| 582525 | 3.7 | 350 | 5.8*25*25 | Pouch |
LithoTop provides ultra-thin lithium polymer battery solutions designed for slim electronic products where thickness is the primary design constraint. Our batteries are widely used in smart cards, wearable medical devices, smart glasses, smart clothing, Bluetooth devices, GPS trackers, and other compact electronics.
Available in thicknesses starting from as low as 1.0mm, our ultra-thin batteries combine high energy density with excellent mechanical reliability. Every battery can be customized according to your product dimensions, connector type, wire configuration, and protection requirements.
- Ultra-thin profile from 1.0mm for compact designs
- High energy density with lightweight construction
- Easy integration into limited installation space
- Stable discharge performance and long service life
- Flexible OEM & ODM customization support
- Optional PCM, NTC and fuel gauge integration
Ultra-Thin LiPo Batteries List
| Model | Voltage(V) | Capacity | Cell size(T*W*L)mm |
|---|---|---|---|
| 042040 | 3.7 | 8 | 0.4*20*40 |
| 042255 | 3.7 | 24 | 0.4*22*55 |
| 062550 | 3.7 | 40 | 0.6*25*50 |
| 072738 | 3.8 | 38 | 0.7*27*38 |
| 084545 | 3.7 | 110 | 0.8*45*45 |
| 012323 | 3.7 | 30 | 1*23*23 |
| 013040 | 3.7 | 80 | 1*30*40 |
| 013050 | 3.7 | 100 | 1*30*50 |
| 014348 | 3.7 | 130 | 1*43*48 |
| 014460 | 3.7 | 180 | 1*44*60 |
| 015253 | 3.7 | 180 | 1*52*53 |
| 015362 | 3.7 | 250 | 1*53*62 |
| 123030 | 3.7 | 80 | 1.2*30*30 |
| 126070 | 3.7 | 300 | 1.2*60*70 |
| 132939 | 3.7 | 90 | 1.3*29*39 |
| 153040 | 3.7 | 110 | 1.5*30*40 |
| 155075 | 3.7 | 350 | 1.5*50*75 |
| 155776 | 3.7 | 480 | 1.5*57*76 |
| 163050 | 3.7 | 160 | 1.6*30*50 |
| 191622 | 3.7 | 35 | 1.9*16*22 |
We support a wide variety of customized battery shapes, including C-shape, D-shape, curve shape, U-shape, fan shape, moon shape, trapezoid shape, irregular hexagon shape, and other irregular structures according to customer requirements and device dimensions.
Our special-shaped batteries are manufactured using advanced production technology and high-quality lithium polymer cells, ensuring stable voltage output, high energy density, low internal resistance, and reliable safety performance.
- Customized irregular battery shapes for unique product designs
- Efficient internal space utilization
- Ultra-thin and lightweight structure
- High energy density and stable performance
- Low self-discharge and long cycle life
- Optional curved and flexible battery designs
- Reliable safety performance with PCM/BMS protection
- Flexible OEM & ODM customization support

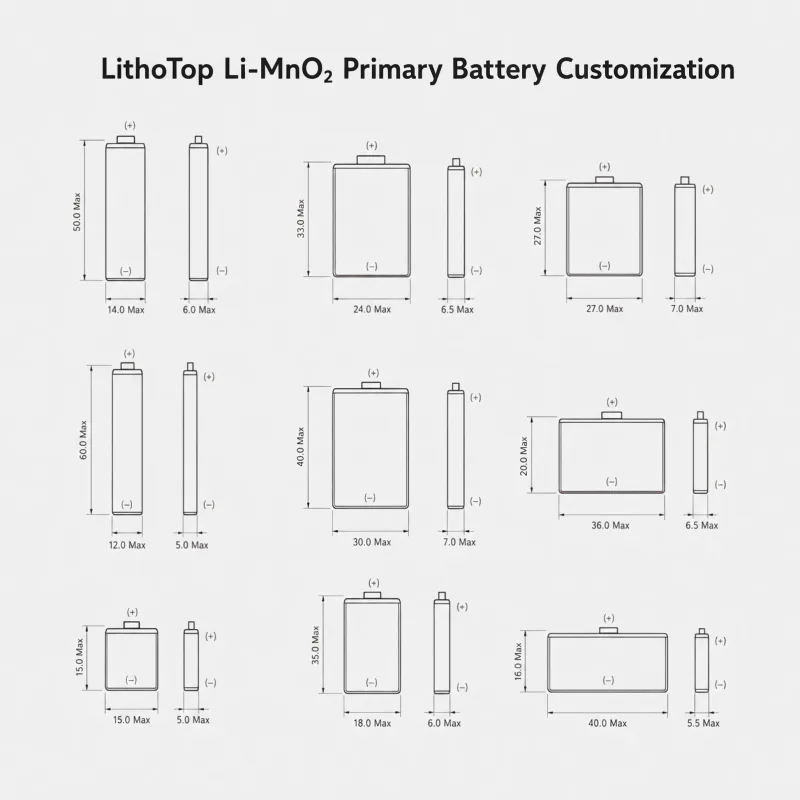

Li-MnO₂ Primary Batteries List
| Model | Voltage(V) | Capacity(mAh) | Std. discharge current(mA) | Max. continuous discharge current(mA) | Max. peak discharge current(mA) | Size(mm) | Weight(g) |
|---|---|---|---|---|---|---|---|
| CP042345 | 3 | 30 | 1 | 20 | 35 | 0.4*23*45 | 1 |
| CP2012120 | 3 | 480 | 1 | 50 | 80 | 2*13*127 | 5 |
| CP201535 | 3 | 120 | 1 | 30 | 60 | 2*15*35 | 2 |
| CP204142 | 3 | 500 | 1 | 150 | 300 | 2.2*41*42 | 6 |
| CP223565 | 3 | 750 | 1 | 200 | 500 | 2.5*36*66 | 6.5 |
| CP223830 | 3 | 400 | 1 | 60 | 120 | 2.2*38*30 | 4 |
| CP224035 | 3 | 550 | 1 | 150 | 300 | 2.5*41*36 | 5 |
| CP224147 | 3 | 800 | 1 | 200 | 400 | 2.2*45.5*48.3 | 6.5 |
| CP225040 | 3 | 750 | 1 | 200 | 500 | 2.5*51*41 | 7 |
| CP234044 | 3 | 650 | 1 | 200 | 400 | 2.5*41*43 | 6 |
| CP243742 | 3 | 700 | 1 | 200 | 300 | 2.6*38*43 | 6 |
| CP252025 | 3 | 220 | 1 | 80 | 150 | 2.5*20.5*25 | 2 |
| CP253025 | 3 | 220 | 1 | 30 | 50 | 2.7*31*26 | 2.5 |
| CP253428 | 3 | 250 | 1 | 200 | 400 | 2.4*34*28 | 2.5 |
| CP254442 | 3 | 800 | 1 | 200 | 400 | 2.7*44*42 | 6.5 |
| CP274136 | 3 | 650 | 1 | 150 | 300 | 2.7*41*36 | 6 |
| CP274142 | 3 | 850 | 1 | 200 | 400 | 2.8*41*42 | 7 |
| CP301536 | 3 | 300 | 0.5 | 50 | 100 | 3.2*16*37 | 3 |
| CP303330 | 3 | 560 | 1 | 150 | 300 | 3.2*33*30 | 4.5 |
| CP303047 | 3 | 1000 | 1 | 300 | 500 | 3*30*47 | 8 |
| CP304536 | 3 | 900 | 1 | 300 | 500 | 3*45*36 | 7 |
| CP304544 | 3 | 1300 | 5 | 300 | 500 | 3*46*45 | 11.5 |
| CP305050 | 3 | 1600 | 1 | 600 | 1200 | 3*50*50 | 14 |
| CP343130 | 3 | 600 | 1 | 200 | 400 | 3.4*31*31 | 6.5 |
| CP352440 | 3 | 650 | 1 | 200 | 500 | 3.5*25*42 | 6 |
| CP354328 | 3 | 700 | 1 | 200 | 400 | 3.5*43*28 | 5.5 |
| CP372525 | 3 | 400 | 1 | 80 | 150 | 3.7*25*25 | 4 |
| CP382025 | 3 | 350 | 1 | 100 | 200 | 4*20.5*25 | 3.5 |
| CP383047 | 3 | 1350 | 5 | 400 | 700 | 4*31*47 | 9.5 |
| CP401536 | 3 | 380 | 1 | 100 | 150 | 4*15*36 | 3.5 |
| CP402523 | 3 | 400 | 1 | 200 | 300 | 4*25*23 | 3.5 |
| CP403742 | 3 | 1400 | 5 | 600 | 1000 | 4.6*38*43 | 13 |
| CP404147 | 3 | 1800 | 5 | 600 | 1200 | 4*41*48 | 14 |
| CP405050 | 3 | 2500 | 5 | 800 | 1500 | 4.4*50*50 | 18 |
| CP443742 | 3 | 1500 | 1 | 600 | 800 | 4.6*38*43 | 13 |
| CP444844 | 3 | 1800 | 5 | 600 | 1500 | 4.4*48*44 | 14 |
| CP452124 | 3 | 420 | 1 | 100 | 200 | 4.5*21*24 | 3.5 |
| CP501932 | 3 | 600 | 1 | 200 | 300 | 5.2*20*33 | 6 |
| CP502025 | 3 | 400 | 1 | 100 | 200 | 5.2*20.5*25 | 3.5 |
| CP502425 | 3 | 550 | 1 | 250 | 300 | 5.2*25*25 | 5.5 |
| CP502432 | 3 | 700 | 1 | 150 | 300 | 5.2*24*32.5 | 6 |
| CP502440 | 3 | 1200 | 1 | 120 | 400 | 5.2*24*41 | 8 |
| CP502525 | 3 | 550 | 1 | 200 | 400 | 5.2*26*26 | 4.5 |
| CP503333 | 3 | 1200 | 1 | 400 | 800 | 5*34*34 | 9 |
| CP503742 | 3 | 1900 | 5 | 800 | 1000 | 5.2*38*43 | 16 |
| CP504644 | 3 | 2400 | 5 | 1000 | 2000 | 5.2*46*44 | 17 |
| CP505050 | 3 | 3000 | 10 | 1200 | 2500 | 5.2*50*50 | 23 |
| CP553536 | 3 | 1600 | 5 | 600 | 1200 | 5.5*35*37 | 11 |
| CP603132 | 3 | 1200 | 5 | 500 | 1000 | 6.2*32*33 | 11 |
| CP603147 | 3 | 1950 | 5 | 800 | 1200 | 6*31*47 | 16 |
| CP603450 | 3 | 2300 | 5 | 1200 | 1500 | 6.2*35*51 | 18 |
| CP603956 | 3 | 3200 | 5 | 1500 | 2000 | 6.2*40*57 | 25 |
| CP652230 | 3 | 800 | 5 | 300 | 500 | 6.7*23*31 | 7 |
| CP702440 | 3 | 1500 | 5 | 300 | 600 | 7*24.5*41 | 11 |
| CP705050 | 3 | 4000 | 5 | 1500 | 3000 | 7.2*50*51 | 32 |
| CP752425 | 3 | 900 | 1 | 250 | 500 | 7.7*25*25 | 7 |
| CP7839109 | 3 | 10000 | 1 | 3000 | 5000 | 8*40*110 | 63 |
| CP802030 | 3 | 800 | 1 | 100 | 200 | 8.1*20*30 | 6 |
| CP952434 | 3 | 1600 | 5 | 300 | 600 | 9.5*25*35 | 11 |
| CP1005050 | 3 | 6000 | 5 | 2000 | 5000 | 10.2*50*51 | 50 |
| CP1202425 | 3 | 1350 | 1 | 450 | 1125 | 12*25*26 | 9 |
FAQ
What battery is used in blood pressure monitors?
Digital blood pressure monitors commonly use rechargeable LiPo batteries or Li-MnO₂ primary batteries depending on the product design and power requirements.
Are rechargeable batteries suitable for blood pressure monitors?
Yes. Rechargeable LiPo batteries are widely used in portable and wearable blood pressure monitoring devices because they provide high energy density and compact dimensions.
Why are Li-MnO₂ batteries used in medical devices?
Li-MnO₂ primary batteries offer long shelf life, stable voltage, and low self-discharge, making them ideal for low-power medical electronics.
Can LithoTop customize batteries for blood pressure monitors?
Yes. LithoTop provides customized battery solutions including voltage, capacity, dimensions, connectors, PCM protection, NTC integration, and OEM battery pack development.
Want a different Wearable batteries? Contact us now for your special needs.
