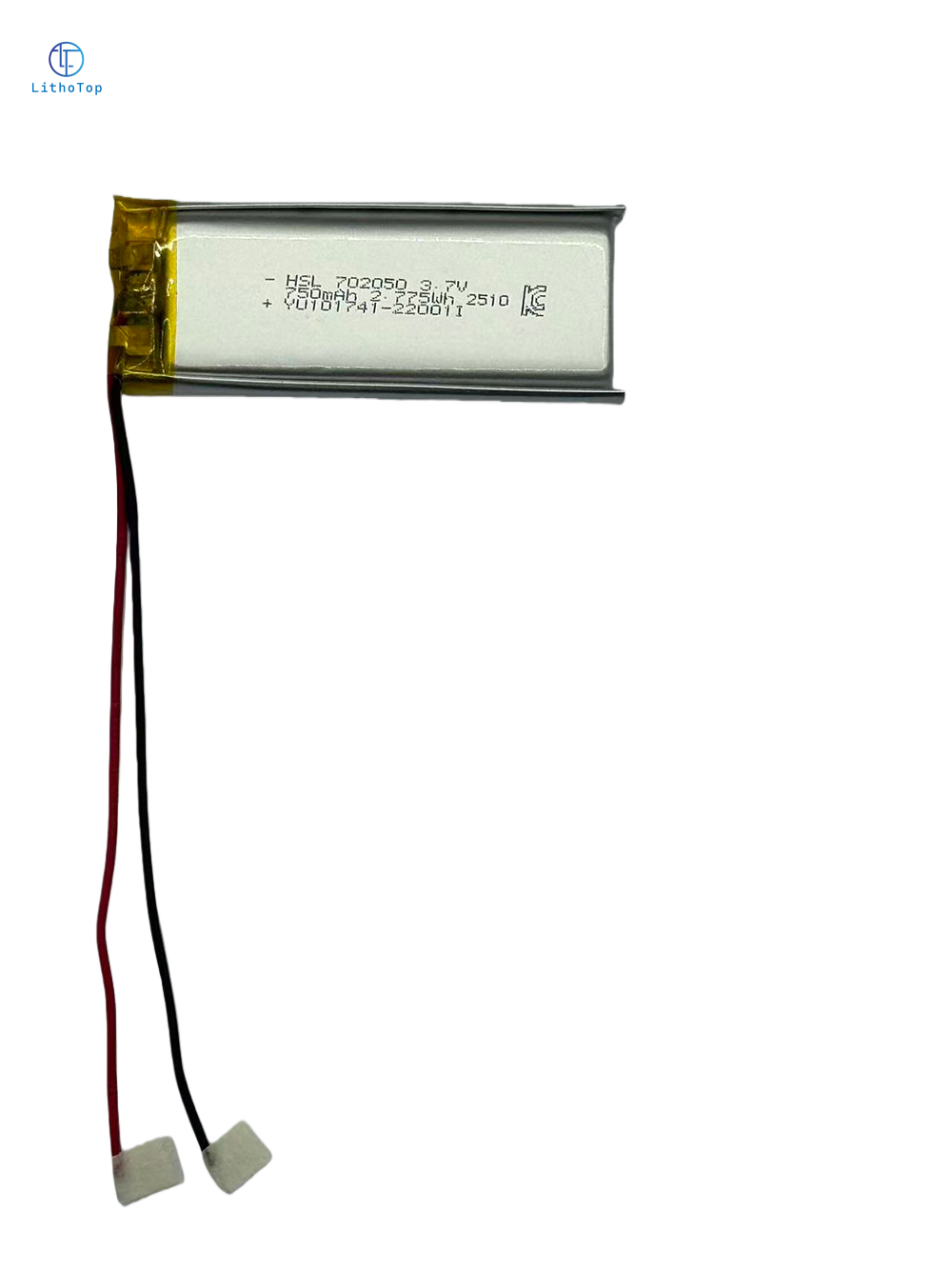

KC CE 702050 750mAh Lipo battery
The 702050 3.7V 750mAh lithium polymer battery delivers stable performance and reliable power in a slim, compact design. Built with Grade A cells, it offers true capacity, low internal resistance, and good cycle life. Ideal for portable electronics, smart devices, handheld equipment, and IoT applications.
Customization options for PCM protection, connectors, wire length, and labeling are available for OEM projects.
Additional information
| Product Type | Li-Polymer battery |
|---|---|
| Model number | 702050 |
| Voltage (Nominal) | 3.7V |
| Capacity (Nominal) | 750mAh |

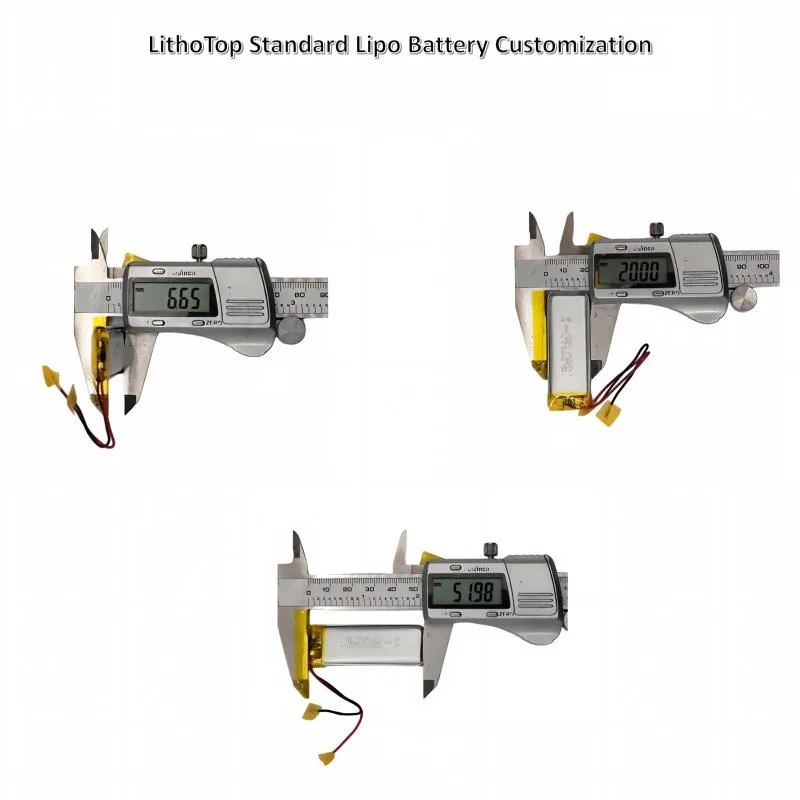

| Dimensions | 7.0±0.2*20±0.5*50±2.5mm |
| Constant Discharge Current | Typically 0.5C-1C |
| Working Temperature | charge: 0-45℃; discharge: -20-60℃ |
| Certification | KC/CE/ROHS |
Professional Grade A Lipo Battery Solutions
Delivering superior performance consistency and longer cycle life through automated cell matching technology designed for heavy-duty industrial applications.
The 702050 3.7V 750mAh LiPo battery is designed for electronic products that need a practical balance between compact size and dependable runtime. Its lithium polymer pouch structure allows flexible integration into slim enclosures, handheld products, sensor devices, tracking equipment, and portable rechargeable systems.
With 750mAh capacity, this battery provides more usable runtime than many smaller LiPo cells while still maintaining a compact form factor. It can support control boards, wireless modules, GPS modules, Bluetooth communication, LED indicators, small displays, sensors, and standby operation.
LithoTop applies strict production control during cell selection, capacity testing, voltage inspection, internal resistance testing, PCM assembly, aging verification, appearance inspection, and final quality control. These processes help ensure stable performance, reliable safety protection, and consistent mass production quality.
- 750mAh Reliable Capacity
Provides dependable runtime for compact electronic products and portable rechargeable devices. - Stable 3.7V LiPo Platform
Supports control boards, wireless modules, sensors, displays, LED indicators, and standby systems. - PCM Protection Available
Supports overcharge, over-discharge, over-current, and short-circuit protection for safer operation. - Low Self-Discharge Performance
Suitable for products requiring standby operation, periodic use, and stable storage performance. - Strict Quality Inspection
Each battery is checked for voltage, capacity, internal resistance, appearance, and consistency before shipment. - Custom Battery Pack Assembly
Supports customized wires, connectors, PCM, NTC, labels, shrink wrap, and packaging according to project needs.
- GPS tracking devices
- Bluetooth speakers and accessories
- Smart home sensors
- Portable medical electronics
- IoT monitoring devices
- Wearable electronics
- Wireless alarm devices
- Smart remote controllers
- Handheld rechargeable equipment
- Compact consumer electronics
7mm Thickness Flat Lipo Battery
| Models | Voltage(V) | Capacity(mAh) | Cell Dimensions(mm) | Shape |
|---|---|---|---|---|
| 701220 | 3.7 | 110 | 7.0*12*20mm | Rectangle |
| 701250 | 3.7 | 420 | 7.0*12*50mm | Rectangle |
| 701255 | 3.7 | 450 | 7.0*12*54mm | Rectangle |
| 701421 | 3.7 | 160 | 7.0*14*21mm | Rectangle |
| 701430 | 3.7 | 250 | 7.0*14*30mm | Rectangle |
| 701435 | 3.7 | 250-10C | 7.0*14*35mm | Rectangle |
| 701435 | 3.7 | 300 | 7.0*14*35mm | Rectangle |
| 701525 | 3.7 | 200 | 7.0*15*25mm | Rectangle |
| 701530 | 3.7 | 260 | 7.0*15*30mm | Rectangle |
| 701535 | 3.7 | 350 | 7.0*15*35mm | Rectangle |
| 701540 | 3.7 | 390 | 7.0*15*40mm | Rectangle |
| 701727 | 3.7 | 320 | 7.0*17*27mm | Rectangle |
| 701732 | 3.7 | 330 | 7.0*17*32mm | Rectangle |
| 701734 | 3.7 | 350 | 7.0*17*34mm | Rectangle |
| 701738 | 3.7 | 400 | 7.0*17*38mm | Rectangle |
| 701818 | 3.7 | 150 | 7.0*18*18mm | Rectangle |
| 701821 | 3.7 | 180 | 7.0*18*21mm | Rectangle |
| 701831 | 3.7 | 350 | 7.0*18*31mm | Rectangle |
| 701840 | 3.7 | 500 | 7.0*18*40mm | Rectangle |
| 701843 | 3.7 | 580 | 7.0*18*43mm | Rectangle |
| 701850 | 3.7 | 650 | 7.0*18*50mm | Rectangle |
| 701870 | 3.7 | 850 | 7.0*18*70mm | Rectangle |
| 701920 | 3.7 | 200 | 7.0*19*20mm | Rectangle |
| 701935 | 3.7 | 520 | 7.0*19*35mm | Rectangle |
| 701950 | 3.7 | 630 | 7.0*19*50mm | Rectangle |
| 702020 | 3.7 | 200 | 7.0*20*20mm | Rectangle |
| 702024 | 3.7 | 300 | 7.0*20*24mm | Rectangle |
| 702025 | 3.7 | 220-20C | 7.0*20*25mm | Rectangle |
| 702025 | 3.7 | 300 | 7.0*20*25mm | Rectangle |
| 702028 | 3.7 | 380 | 7.0*20*28mm | Rectangle |
| 702030 | 3.7 | 400 | 7.0*20*30mm | Rectangle |
| 702030 | 3.7 | 350-10C | 7.0*20*30mm | Rectangle |
| 702030 | 3.7 | 300-20C | 7.0*20*30mm | Rectangle |
| 702035 | 3.7 | 480 | 7.0*20*35mm | Rectangle |
| 702040 | 3.7 | 500 | 7.0*20*40mm | Rectangle |
| 702050 | 3.7 | 750 | 7.0*20*50mm | Rectangle |
| 702060 | 3.7 | 850 | 7.0*20*60mm | Rectangle |
| 702174 | 3.7 | 1300 | 7.0*21*74mm | Rectangle |
| 702265 | 3.7 | 1000 | 7.0*22*65mm | Rectangle |
| 702525 | 3.7 | 400 | 7.0*24*25mm | Rectangle |
| 702530 | 3.7 | 500 | 7.0*25*30mm | Rectangle |
| 702535 | 3.7 | 600 | 7.0*25*35mm | Rectangle |
| 702540 | 3.7 | 700 | 7.0*25*40mm | Rectangle |
| 702542 | 3.7 | 750 | 7.0*25*42mm | Rectangle |
| 702548 | 3.7 | 880 | 7.0*25*48mm | Rectangle |
| 702659 | 3.7 | 1300 | 7.0*26*59mm | Rectangle |
| 702728 | 3.7 | 480 | 7.0*27*28mm | Rectangle |
| 702831 | 3.7 | 630 | 7.0*28*31mm | Rectangle |
| 702950 | 3.8 | 1400 | 7.0*29*50mm | Rectangle |
| 703030 | 3.7 | 650 | 7.0*30*30mm | Rectangle |
| 703035 | 3.7 | 700 | 7.0*30*35mm | Rectangle |
| 703040 | 3.7 | 800 | 7.0*30*40mm | Rectangle |
| 703048 | 3.7 | 1000 | 7.0*30*48mm | Rectangle |
| 703060 | 3.7 | 1300 | 7.0*30*60mm | Rectangle |
| 703065 | 3.7 | 1600 | 7.0*30*65mm | Rectangle |
| 7030100 | 3.7 | 1790 | 7.0*30*100mm | Rectangle |
| 703448 | 3.7 | 1400 | 7.0*34*48mm | Rectangle |
| 703450 | 3.7 | 1500 | 7.0*34*50mm | Rectangle |
| 703455 | 3.7 | 1300 | 7.0*34*55mm | Rectangle |
| 703465 | 3.7 | 1700 | 7.0*34*65mm | Rectangle |
| 704050 | 3.7 | 1600 | 7.0*40*50mm | Rectangle |
| 704060 | 3.7 | 2000 | 7.0*40*60mm | Rectangle |
| 704070 | 3.7 | 2500 | 7.0*40*70mm | Rectangle |
| 704268 | 3.7 | 2200 | 7.0*42*68mm | Rectangle |
| 704345 | 3.8 | 2100 | 7.0*43*45mm | Rectangle |
| 704560 | 3.8 | 2700 | 7.0*45*60mm | Rectangle |
| 706090 | 3.7 | 5000 | 7.0*60*90mm | Rectangle |
| 7060100 | 3.7 | 6000 | 7.0*60*100mm | Rectangle |
| 713450 | 3.7 | 1500 | 7.1*34*50mm | Rectangle |
| 721616 | 3.7 | 130 | 7.2*16*16mm | Rectangle |
| 722035 | 3.7 | 520 | 7.2*20*35mm | Rectangle |
| 722060 | 3.7 | 1000 | 7.2*20*60mm | Rectangle |
| 722932 | 3.8 | 900 | 7.2*29*32mm | Rectangle |
| 725084 | 3.7 | 3300 | 7.2*50*84mm | Rectangle |
| 732950 | 3.7 | 1000 | 7.3*29*50mm | Rectangle |
| 735590 | 3.7 | 4000 | 7.3*55*90mm | Rectangle |
| 7470100 | 3.7 | 6000 | 7.4*70*100mm | Rectangle |
| 751525 | 3.7 | 230 | 7.5*15*25mm | Rectangle |
| 751528 | 3.7 | 280 | 7.5*15*28mm | Rectangle |
| 751530 | 3.7 | 300 | 7.5*15*30mm | Rectangle |
| 751535 | 3.7 | 380 | 7.5*15*35mm | Rectangle |
| 751540 | 3.8 | 490 | 7.5*15*40mm | Rectangle |
| 751542 | 3.8 | 550 | 7.5*15*42mm | Rectangle |
| 751728 | 3.7 | 280 | 7.5*17*28mm | Rectangle |
| 751732 | 3.7 | 250 | 7.5*17*32mm | Rectangle |
| 751818 | 3.7 | 200 | 7.5*18*18mm | Rectangle |
| 752020 | 3.7 | 250 | 7.5*20*20mm | Rectangle |
| 752035 | 3.7 | 500 | 7.5*20*35mm | Rectangle |
| 752040 | 3.7 | 600 | 7.5*20*40mm | Rectangle |
| 752233 | 3.7 | 450 | 7.5*22*33mm | Rectangle |
| 752240 | 3.8 | 850 | 7.5*22*40mm | Rectangle |
| 752530 | 3.7 | 520 | 7.5*25*30mm | Rectangle |
| 752535 | 3.7 | 600 | 7.5*25*35mm | Rectangle |
| 752648 | 3.7 | 900 | 7.5*26*48mm | Rectangle |
| 753048 | 3.7 | 1200 | 7.5*30*48mm | Rectangle |
| 753536 | 3.8 | 1200 | 7.5*35*36mm | Rectangle |
| 754555 | 3.7 | 2500 | 7.5*45*55mm | Rectangle |
| 755060 | 3.7 | 3000 | 7.5*50*60mm | Rectangle |
| 755590 | 3.7 | 5000 | 7.5*55*90mm | Rectangle |
| 781548 | 3.7 | 500 | 7.8*15*48mm | Rectangle |
| 781920 | 3.7 | 240-5C | 7.8*19*20mm | Rectangle |
| 782035 | 3.7 | 500-5C | 7.8*20*35mm | Rectangle |
| 782526 | 3.7 | 460 | 7.8*25*26mm | Rectangle |
| 783048 | 3.8 | 1500 | 7.8*30*48mm | Rectangle |
| 7565113 | 3.7 | 7000 | 7.5*65*113mm | Rectangle |
| 7565121 | 3.7 | 8000 | 7.5*65*121mm | Rectangle |
| 762022 | 3.7 | 260 | 7.6*20*22mm | Rectangle |
| 773942 | 3.7 | 1700 | 7.7*39*42mm | Rectangle |
| 781350 | 3.7 | 500 | 7.8*13*50mm | Rectangle |
| 782035 | 3.7 | 500 | 7.8*20*35mm | Rectangle |
| 782035 | 3.7 | 500-3C | 7.8*20*35mm | Rectangle |
| 783048 | 3.7 | 1200 | 7.8*30*48mm | Rectangle |
*Contact us for custom LiPo battery or customize your special battery !
Customer Development Story
Discover how we helps global customers solve real-world battery challenges through customized lithium battery solutions.
01 – Korea Smart Pet GPS Tracker Project with KC Certification
A Korean smart pet technology company was developing a compact GPS tracker for dogs and cats. The device needed to support GPS positioning, Bluetooth connection, LED indication, buzzer alerts, and periodic wireless data transmission. The customer’s previous battery could fit the enclosure, but the runtime was not stable enough during outdoor tracking tests, especially when GPS positioning and wireless communication operated frequently.
The customer contacted LithoTop because they needed a 3.7V rechargeable LiPo battery with better runtime, stable voltage output, customized connector assembly, and certification support for the Korean market. LithoTop reviewed the tracker’s GPS working current, standby current, wireless transmission interval, charging circuit, enclosure space, cable routing, and target usage time.
After evaluation, LithoTop recommended the 702050 750mAh LiPo Battery. Our engineering team judged that the 750mAh capacity provided a better runtime balance while still fitting the compact pet tracker housing. LithoTop also customized the wire length, connector direction, PCM protection, label information, and packaging method according to the customer’s assembly process.
During sample testing, LithoTop supported capacity verification, GPS operation simulation, wireless pulse discharge testing, standby testing, charging compatibility checking, temperature observation, and installation fit validation. Because the product was planned for sale in Korea, LithoTop also supported the project with KC certification preparation and related battery documentation.
Before mass production, both teams confirmed samples, electrical performance, connector durability, label details, packaging requirements, and inspection standards. The final battery solution helped the pet tracker achieve more stable outdoor operation and smoother market preparation. For the customer, this improved product reliability, reduced certification pressure, and supported a more confident launch in the Korean smart pet device market.
02 – European Smart Home Controller Project with CE and RoHS Support
A European smart home brand was developing a compact rechargeable wall controller for lighting scenes, temperature adjustment, and wireless device control. The product needed to power a touch button circuit, Bluetooth module, LED indicator, memory chip, and standby system. The customer wanted a rechargeable battery that could provide stable standby performance while keeping the controller slim and easy to install.
The customer approached LithoTop after testing a smaller LiPo battery that caused short runtime and frequent charging complaints during user trials. They needed a battery manufacturer that could provide a suitable capacity upgrade, customized battery pack assembly, and compliance support for the European market.
LithoTop analyzed the controller’s standby current, button activation cycle, Bluetooth transmission peak, LED load, charging method, internal housing space, and cable outlet direction. Based on this evaluation, LithoTop recommended the 702050 750mAh LiPo battery as a compact rechargeable power source with improved runtime.
During prototype development, LithoTop optimized the PCM protection design, connector type, wire length, insulation structure, and label format. Sample batteries were tested through standby simulation, button activation testing, Bluetooth pulse discharge testing, charge-discharge cycling, storage testing, and installation fit verification.
For the customer’s European sales plan, LithoTop also supported CE and RoHS documentation requirements for the battery project. This helped the customer prepare product compliance materials more efficiently before entering pilot production.
Before production approval, the customer confirmed approved sample performance, battery dimensions, connector reliability, packaging method, CE and RoHS support documents, and incoming inspection standards. The final battery solution helped the smart home controller achieve longer standby time and more stable wireless performance. For the customer, this reduced charging complaints, improved user experience, and supported smoother European market entry.
Why Choose LithoTop for 702050 LiPo Battery Solutions?
Factory Support
A reliable 702050 LiPo battery requires more than a standard cell model. Battery performance depends on capacity consistency, voltage stability, internal resistance control, PCM protection design, cable outlet direction, connector reliability, insulation method, and final aging inspection.
LithoTop supports customers from sample evaluation to mass production with professional engineering support, flexible customization, strict production inspection, and project-based certification support. Our team can help evaluate battery size, runtime target, charging method, operating current, protection circuit, connector type, NTC requirement, and real application conditions before confirming the final battery solution.
More Customer Cooperation Cases
Powering leading batteries across wearables, medical devices, IoT, and consumer electronics in 30+ countries..
Smart Bands
A European wearable technology company was developing a new smart fitness band with strict requirements for battery thickness, cycle life, and safety. Their device needed a lightweight LiPo battery that could fit into a compact wristband while support monitoring and Bluetooth connectivity.
Portable Medical Monitor
A startup company focusing on smart health products needed a flexible battery solution for their next-generation fitness monitoring wearable. The device design was slim and curved, requiring a customized LiPo battery with precise dimensions and stable charging performance.
Portable Translator
A customer from Asia was developing a portable AI translation device for travel and business communication. The product required a battery with stable voltage output, compact size, and long standby performance to support voice processing and wireless transmission.
Handling Precautions & Guidelines
Find answers to the most common questions about ordering, shipping, certifications, and working with lithotop as your battery partner.
Engineer’s will make inner BOM according to your confirmed samples. And our quality control teams continuously monitor the entire manufacturing process to ensure the each mass production is the same as samples.
LithoTop specializes in custom lithium battery solutions, including LiPo batteries, Li-ion battery packs, LiFePO4 batteries, high-rate drone batteries, curved batteries, ultra-thin batteries, and custom rechargeable battery packs for industrial and consumer applications.
LithoTop focuses on:Custom battery solutions for special applications, own developed PCB/PCM to help you with Competitive factory-direct pricing, Experience with difficult battery projects such as curved, ultra-thin, and high-discharge batteries. Long-term cooperation support for startups and established brands.
Yes. LithoTop provides fully customized battery solutions based on your device requirements, including voltage, capacity, discharge rate, dimensions, connector type, PCM/BMS protection, and special shapes such as curved or ultra-thin batteries.
Standard samples are usually available quickly about 3-7 days, while custom battery projects typically require evaluation, engineering confirmation, prototyping, and testing. The timeline depends on battery specifications, and certification requirements. Mass order is about 30 working days.
Depending on the product and project requirements, LithoTop batteries can support certifications including UN38.3, MSDS, CE, RoHS, IEC62133, UL , and other transportation or safety compliance documents.
MOQ depends on the battery model and customization level. Standard batteries may support lower quantities like 100pcs, while fully customized battery projects usually require a development MOQ. LithoTop supports both prototype projects and mass production orders.
LithoTop follows strict quality control procedures including:Incoming material inspection, Cell matching and grading Capacity, and voltage testing, Aging and performance tests, 100% Safety inspections before shipment.Quality consistency is critical for battery reliability and long-term cooperation.
Normally, we ship our batteries via DHL, UPS, FedEx, air freight, or sea , depending on order size, destination, and customer preference.
Yes. LithoTop can support project-based certification and documentation requirements such as KC, CE, RoHS, UN38.3, MSDS, and other battery-related documents according to customer market requirements.
