Products

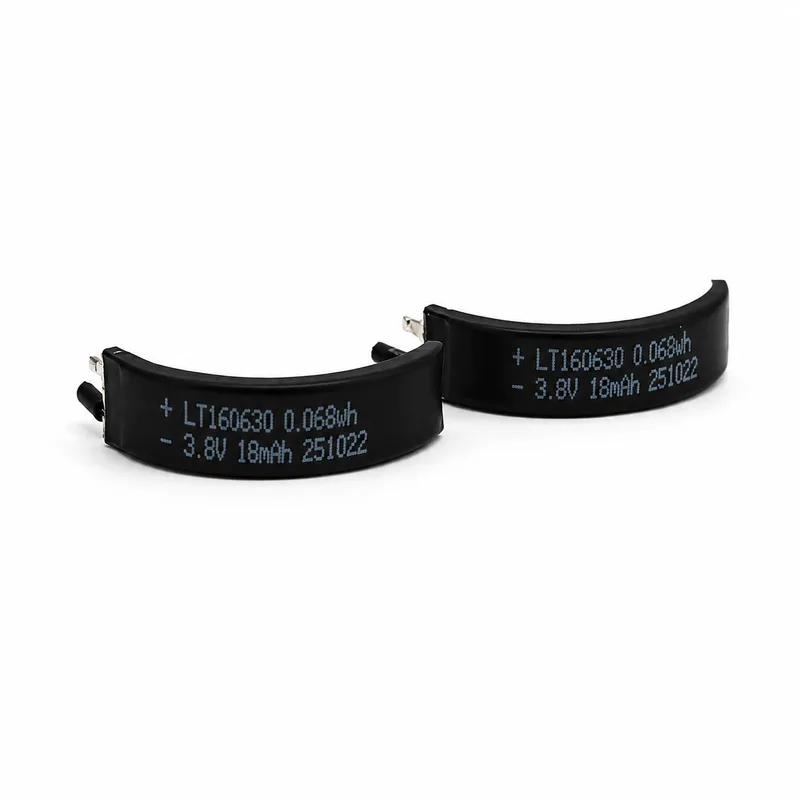

160630 3.8V 18mAh Curved Batteries
The 160630 3.8V 18mAh Curved Batteries are designed for compact electronic devices that require a curved shape, thin structure, lightweight design, and stable voltage output. With a 3.8V high-voltage platform and 18mAh capacity, this battery is suitable for smart rings, wearable sensors, biometric devices, curved electronic tags, medical patches, smart labels, and other miniature curved rechargeable electronics.
As a professional lithium polymer battery manufacturer, LithoTop provides customized curved battery solutions, including curvature design, cell size customization, labels, packaging, and OEM/ODM battery pack assembly.
Additional information
| Product Type | Curved Lipo battery |
|---|---|
| Model number | 160630 |
| Voltage (Nominal) | 3.8V |
| Capacity (Nominal) | 18mAh |

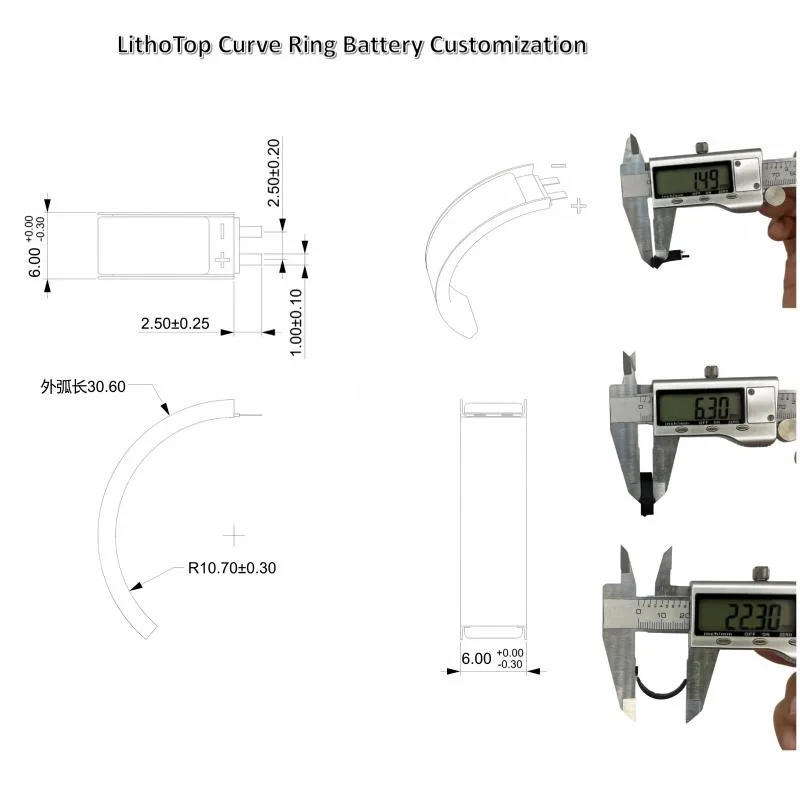

| Dimensions | 1.6±0.2*6±0.2*30±0.2mm (R10.7) |
| Constant Discharge Current | Typically 0.2C-1C |
| Working Temperature | charge: 0-45℃; discharge: -20-60℃ |
Professional Grade A Lipo Battery Solutions
Delivering superior performance consistency and longer cycle life through automated cell matching technology designed for heavy-duty industrial applications.
The 160630 3.8V 18mAh curved battery is engineered for products where a standard flat pouch cell cannot fully match the internal structure. Its curved polymer design helps improve space utilization inside arc-shaped, ring-shaped, band-shaped, and ergonomic electronic devices.
With 18mAh capacity, this battery is mainly suitable for low-power miniature electronics requiring rechargeable power for standby operation, short wireless communication, sensor activation, LED indication, biometric detection, and compact control circuits. The 3.8V high-voltage platform helps provide improved usable energy within a very limited battery volume.
LithoTop applies strict production control during cell selection, curvature forming, capacity testing, voltage inspection, internal resistance testing, thickness checking, aging verification, appearance inspection, and final quality control. These processes help ensure stable performance, reliable safety, and consistent production quality.
- Curved Battery Structure
Designed for arc-shaped, ring-shaped, band-shaped, and ergonomic electronic product layouts. - 3.8V High-Voltage Platform
Provides higher energy density compared with standard 3.7V lithium polymer battery designs. - 18mAh Miniature Capacity
Suitable for low-power electronics, standby backup, short activation cycles, and compact rechargeable systems. - Compact 160630 Cell Design
Easy to integrate into smart rings, curved sensors, electronic tags, and miniature wearable products. - Stable Voltage Output
Supports small chips, sensors, LED indicators, Bluetooth modules, and low-power control circuits. - Lightweight Lithium Polymer Cell
Helps reduce total product weight for comfortable wearable and portable electronic applications. - Controlled Curvature and Thickness
Curvature, thickness, sealing edge, tab position, and cable direction can be evaluated according to product structure.
- Smart rings
- Biometric wearable devices
- Health monitoring rings
- Curved electronic tags
- Medical sensor patches
- Smart labels
- RFID active tags
- Miniature Bluetooth modules
- Curved IoT sensor devices
- Compact rechargeable electronics
Smart Ring Curve Lipo Battery
| Model | Voltage(V) | Capacity(mAh) | Cell Size(T*W*L)mm | Shape | Polairty&Direction |
|---|---|---|---|---|---|
| 125034 | 3.7 | 14 | 1.25*5.1*34 | Curve | CD |
| 3.8 | 16 | Curve | |||
| 125625 | 3.7 | 10 | 1.25*5.6*25 | Curve | CD |
| 3.8 | 12 | Curve | |||
| 125628 | 3.7 | 12 | 1.25*5.6*28 | Curve | CD |
| 3.8 | 14 | Curve | |||
| 125634 | 3.7 | 15 | 1.25*5.6*34 | Curve | CD |
| 3.8 | 17 | Curve | |||
| 126825126825 3.8V 15mAh Curved LiPo Battery | 3.7 | 13 | 1.25*6.9*25 | Curve | ABCD |
| 3.8 | 15 | Curve | |||
| 120732 | 3.7 | 17 | 1.25*7.1*31 | Curve | ABCD |
| 3.8 | 19 | Curve | |||
| 155034 | 3.7 | 16 | 1.52*5.1*34 | Curve | CD |
| 3.8 | 18 | Curve | |||
| 155625 | 3.7 | 12 | 1.52*5.6*25 | Curve | CD |
| 3.8 | 14 | Curve | |||
| 155628 | 3.7 | 14 | 1.52*5.6*28 | Curve | CD |
| 3.8 | 16 | Curve | |||
| 155634 | 3.7 | 18 | 1.52*5.6*34 | Curve | CD |
| 3.8 | 20 | Curve | |||
| 156825156825 3.8V 18mAh Smart Ring Battery | 3.7 | 16 | 1.52*6.9*25 | Curve | ABCD |
| 3.8 | 18 | Curve | |||
| 150720 | 3.7 | 12 | 1.52*6.8*20.5 | Curve | ABCD |
| 3.8 | 13 | Curve | |||
| 150732 | 3.7 | 20 | 1.52*7.1*31 | Curve | ABCD |
| 3.8 | 22 | Curve | |||
| 160620160620 3.8V 12mAh Curved Polymer Battery | 3.7 | 11 | 1.6*6*20 | Curve | ABCD |
| 3.8 | 12 | Curve | |||
| 160625160625 3.8V 17mAh Curved Lithium Battery | 3.7 | 15 | 1.6*6*25 | Curve | ABCD |
| 3.8 | 17 | Curve | |||
| 160630160630 3.8V 18mAh Curved Batteries | 3.7 | 18 | 1.6*6*30 | Curve | ABCD |
| 3.8 | 21 | Curve | |||
| 160635 | 3.7 | 25 | 1.6*6*35 | Curve | D |
| 3.8 | 28 | Curve | |||
| 185625 | 3.7 | 17 | 1.8*5.6*25 | Curve | CD |
| 3.8 | 20 | Curve | |||
| 185628 | 3.7 | 19 | 1.8*5.6*28 | Curve | CD |
| 3.8 | 22 | Curve | |||
| 185634 | 3.7 | 23 | 1.8*5.6*34 | Curve | CD |
| 3.8 | 26 | Curve | |||
| 186825 | 3.7 | 22 | 1.8*7*25 | Curve | CD |
| 3.8 | 24 | Curve | |||
| 180732 | 3.7 | 30 | 1.8*7*31 | Curve | CD |
| 3.8 | 34 | Curve | |||
| 210630 | 3.7 | 30 | 2.1*6*30 | Curve | D |
| 3.8 | 33 | Curve | |||
| 210635 | 3.7 | 35 | 2.1*6*35 | Curve | C |
| 3.8 | 38 | Curve |
*Contact us for custom LiPo battery or customize your special battery !
Customer Development Story
Discover how we helps global customers solve real-world battery challenges through customized lithium battery solutions.
01 – Smart Sports Mouthguard Project from Australia
An Australian sports technology company was developing a smart mouthguard used for impact detection during rugby and boxing training. The product needed to power a small motion sensor, impact detection circuit, memory chip, and short wireless data transmission function. Because the mouthguard had a curved internal structure, the customer could not use a standard flat battery without increasing the product thickness and reducing wearing comfort.
The customer contacted LithoTop because they needed a miniature curved rechargeable battery that could follow the product’s arc while maintaining stable voltage output during short sensor and wireless transmission events. LithoTop reviewed the mouthguard structure, available battery cavity, sensor sampling current, impact recording cycle, wireless transmission peak, charging method, and sealing requirements.
After evaluation, LithoTop recommended the 160630 3.8V 18mAh Curved Batteries. Our engineering team judged that the 18mAh capacity was suitable for the device’s low-power operating profile, while the curved battery shape helped improve internal space utilization without affecting the ergonomic design.
During sample development, LithoTop optimized the curvature direction, tab position, insulation layer, and packaging method to reduce assembly stress inside the curved housing. Sample testing included sensor operation simulation, impact event recording, wireless pulse discharge testing, charging compatibility checking, curved fit validation, storage testing, and temperature observation.
Before pilot production, both teams confirmed samples, battery dimensions, curvature tolerance, charging requirements, packaging method, and incoming inspection standards. The final battery solution helped the customer maintain a slimmer and more comfortable smart mouthguard design. For the customer, this reduced mechanical redesign work, improved user comfort, and supported more reliable field testing with athletes.
02 – Interactive Museum Wristband Project from Singapore
A Singapore-based experience design company was developing an interactive museum wristband for exhibitions, science centers, and children’s education spaces. The wristband needed to power a small identification chip, LED indicator, short-range communication module, and visitor interaction function. The product had to be thin, lightweight, and comfortable enough for children and adults to wear during long exhibition visits.
The customer’s early prototype used a small flat lithium battery, but the rigid battery area made the wristband feel uneven and reduced wearing comfort. They needed a curved rechargeable battery that could better match the wristband arc while still supporting stable operation during repeated visitor interactions.
LithoTop analyzed the wristband’s standby current, LED activation time, communication frequency, charging method, enclosure curvature, cable routing, and expected daily usage cycle. Based on this evaluation, LithoTop recommended the 160630 3.8V 18mAh curved lithium polymer battery as a compact power solution for the curved wristband structure.
During prototype development, LithoTop adjusted the battery curvature, insulation design, wire length, cable outlet direction, and protection option to match the customer’s flexible wristband housing. Sample batteries were tested through visitor interaction simulation, LED pulse testing, short-range communication testing, voltage stability checking, charge-discharge cycling, curved housing fit verification, and repeated wearing tests.
Before production approval, the customer confirmed approved samples, curvature fit, battery thickness, packaging requirements, and batch inspection standards. LithoTop then controlled production according to the confirmed sample and assembly requirements.
The final battery solution helped the interactive wristband achieve a smoother curved profile and more comfortable wearing experience. For the customer, this improved visitor satisfaction, reduced product assembly difficulty, and supported a stronger launch for museum and exhibition projects.
Why Choose LithoTop for 160630 Curved Battery Solutions?
Factory Support
Curved lithium polymer batteries require more than simply bending a standard pouch cell. To achieve reliable performance, the battery must control curvature design, sealing reliability, thickness tolerance, voltage consistency, internal resistance, tab position, cable direction, and mechanical stress during assembly.
LithoTop supports customers from early sample evaluation to mass production with professional engineering support and strict quality inspection. Our team can help evaluate battery curvature, product structure, runtime target, charging method, working current, and real application conditions before confirming the final battery solution.
More Customer Cooperation Cases
Powering leading batteries across wearables, medical devices, IoT, and consumer electronics in 30+ countries..
Smart Health Ring
A wearable health company needed a curved LiPo battery with narrow width for a compact smart ring. LithoTop developed a customized arc-shaped battery that maximized internal space while supporting continuous health and sleep monitoring.
Smart Fitness Ring
A fitness technology company required a small curved battery with reliable runtime for its next-generation smart ring. LithoTop engineered a custom LiPo solution with precise dimensions, high energy density, and stable performance.
Smart Payment Ring
A smart wearable developer needed an ultra-compact arc-shaped battery for a connected payment ring. LithoTop provided a customized curved LiPo battery designed to fit the circular structure while supporting wireless connectivity and daily use.
Handling Precautions & Guidelines
Find answers to the most common questions about ordering, shipping, certifications, and working with lithotop as your battery partner.
Engineer’s will make inner BOM according to your confirmed samples. And our quality control teams continuously monitor the entire manufacturing process to ensure the each mass production is the same as samples.
LithoTop specializes in custom lithium battery solutions, including LiPo batteries, Li-ion battery packs, LiFePO4 batteries, high-rate drone batteries, curved batteries, ultra-thin batteries, and custom rechargeable battery packs for industrial and consumer applications.
LithoTop focuses on:Custom battery solutions for special applications, own developed PCB/PCM to help you with Competitive factory-direct pricing, Experience with difficult battery projects such as curved, ultra-thin, and high-discharge batteries. Long-term cooperation support for startups and established brands.
Yes. LithoTop provides fully customized battery solutions based on your device requirements, including voltage, capacity, discharge rate, dimensions, connector type, PCM/BMS protection, and special shapes such as curved or ultra-thin batteries.
Standard samples are usually available quickly about 3-7 days, while custom battery projects typically require evaluation, engineering confirmation, prototyping, and testing. The timeline depends on battery specifications, and certification requirements. Mass order is about 30 working days.
Depending on the product and project requirements, LithoTop batteries can support certifications including UN38.3, MSDS, CE, RoHS, IEC62133, UL , and other transportation or safety compliance documents.
MOQ depends on the battery model and customization level. Standard batteries may support lower quantities like 100pcs, while fully customized battery projects usually require a development MOQ. LithoTop supports both prototype projects and mass production orders.
LithoTop follows strict quality control procedures including:Incoming material inspection, Cell matching and grading Capacity, and voltage testing, Aging and performance tests, 100% Safety inspections before shipment.Quality consistency is critical for battery reliability and long-term cooperation.
Normally, we ship our batteries via DHL, UPS, FedEx, air freight, or sea , depending on order size, destination, and customer preference.
LithoTop is a professional lithium battery manufacturer with production experience in custom battery development and assembly. We provide direct factory support, engineering assistance, quality control, and customized battery solutions for global customers. We wecome you to visit our factory.
