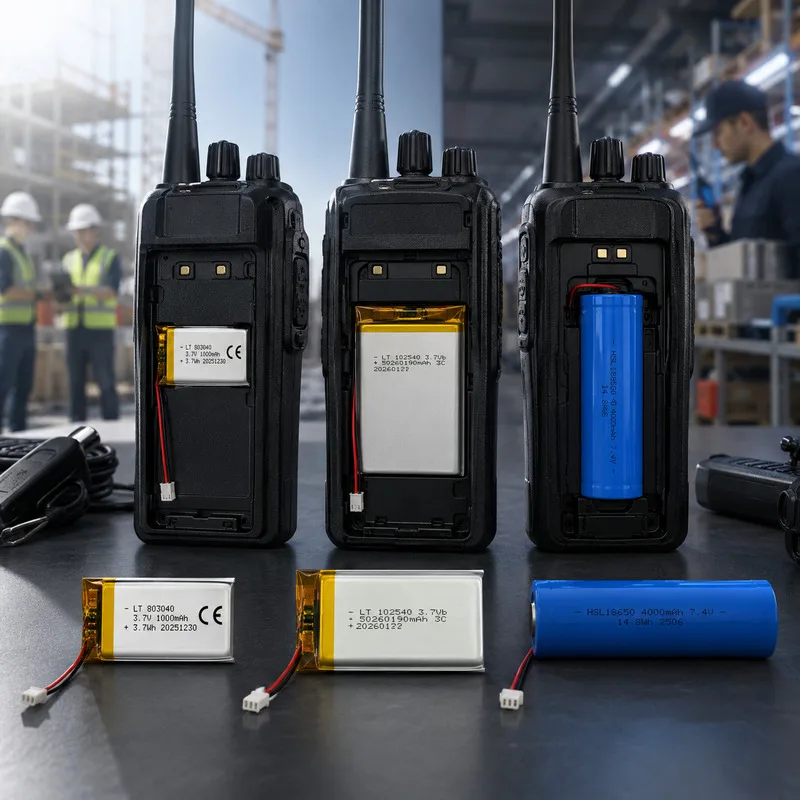

Custom Battery Solutions for Walkie-Talkies & Two-Way Radios
Reliable, high-capacity and high-current lithium battery solutions for handheld radios, professional communication devices and industrial two-way radio systems.
LithoTop develops customized battery packs for walkie-talkies and two-way radios requiring long operating time, stable RF transmission, high pulse-current output and reliable performance in demanding field environments.
Reliable Power for Professional Two-Way Radio Communication
Walkie-talkies and professional two-way radios are widely used in security, construction, logistics, manufacturing, emergency services, transportation, hospitality, utilities and industrial field operations.
Modern radios may combine analog or digital communication, DMR, push-to-talk functions, GPS, Bluetooth, Wi-Fi, LCD displays, emergency alarms, encryption and high-power RF transmission.
Unlike low-power electronic devices, two-way radios may draw significantly higher current during RF transmission. Battery voltage stability directly affects transmit power, communication reliability and available working time.
LithoTop develops customized LiPo batteries, high energy density LiPo batteries, cylindrical Li-ion battery packs, high-rate battery options and low-temperature battery solutions for handheld radio manufacturers.
Typical Walkie-Talkie & Two-Way Radio Applications
Custom battery solutions for professional communication, industrial operations, emergency response and portable radio systems.
Common Battery Types for Walkie-Talkies
Battery selection depends on radio dimensions, RF transmission current, working time, weight, charging method and operating environment.
LithoTop Battery Solutions for Walkie-Talkies
Providing complete electrical, mechanical and charging information helps LithoTop evaluate a suitable walkie-talkie battery solution.
Typical Walkie-Talkie Battery Specifications
| Parameter | Typical Customization Range |
|---|---|
| Nominal Voltage | 3.7V / 7.4V / 11.1V / Custom |
| Capacity | 500mAh–10,000mAh |
| Battery Chemistry | LiPo / Li-ion / High-Rate Li-ion |
| Cell Type | Pouch / 14500 / 18650 / 21700 |
| Configuration | 1S–3S or Custom |
| Continuous Current | Customized According to Radio Load |
| Peak Current | Customized According to RF Transmission |
| Protection | PCM / BMS Optional |
| Temperature Sensor | NTC Optional |
| Wire Gauge | Optional |
| Communication | UART / SMBus Optional |
| Charging | Dock / USB-C / DC / Custom |
| Housing | Heat Shrink / Plastic / Custom Molded Housing |
| Operating Temperature | Standard / Low Temperature Optional |
* Custom Lipo Battery from LithoTop Now !
Why Walkie-Talkie Manufacturers Choose LithoTop
Send us your available battery dimensions, required voltage, capacity, receive current, transmit current, RF power, duty cycle, charging dock design and operating temperature. LithoTop will evaluate a suitable walkie-talkie battery solution for your project.
High-Current Engineering
Flexible Battery Platforms
OEM & ODM Support
Frequently Asked Questions
01 What battery is commonly used in a walkie-talkie?
Most modern walkie-talkies use rechargeable Li-ion or LiPo battery packs. 14500, 18650 and custom pouch-cell configurations can be selected according to radio size, voltage, capacity and discharge-current requirements.
02 How do I choose the correct battery capacity for a two-way radio?
Battery capacity should be selected according to standby current, receive current, transmit current, RF output power, transmit / receive duty cycle and required working time.
03 Why does a walkie-talkie battery need high-current capability?
RF transmission requires significantly more current than standby or receive mode. A battery with suitable high-current capability helps maintain stable voltage and reliable radio transmission during high-power transmit events.
04 Can LithoTop customize 7.4V walkie-talkie batteries?
Yes. LithoTop can customize 2S Li-ion or LiPo battery packs with different capacities, housings, charging contacts, NTC terminals, wire configurations and protection circuits.
05 Can LithoTop customize replacement battery packs for two-way radios?
Yes. Battery cells, PCM or BMS, plastic housings, charging contacts and mechanical locking structures can be customized according to the radio design and installation requirements.
06 Can the battery support charging docks?
Yes. LithoTop can customize charging contacts, NTC terminals, communication pins and mechanical positioning according to the charging cradle or docking station design.
07 Can walkie-talkie batteries work in cold environments?
Yes. LithoTop can evaluate low-temperature battery solutions for winter construction, outdoor security, mountain operations and other cold-environment communication applications. The required temperature, RF load and runtime should be confirmed during battery selection.
08 Can LithoTop customize high-capacity radio batteries?
Yes. Higher-capacity Li-ion or LiPo battery packs can be developed according to available installation space, maximum battery weight, radio power demand and required operating time.
09 What information is required for a custom walkie-talkie battery?
Please provide the required nominal voltage, capacity or target runtime, maximum battery dimensions, continuous current, peak transmit current, RF duty cycle, charging method, connector or charging-contact design, operating temperature and estimated quantity. Radio drawings, existing battery samples and certification requirements are also helpful for engineering review.
