Smart glasses are rapidly transforming the wearable technology market by integrating artificial intelligence, augmented reality, audio communication, and real-time information display into lightweight wearable devices.
From AI-powered smart glasses and AR headsets to industrial inspection eyewear and translation glasses, manufacturers are continuously seeking battery solutions that deliver longer operating time without compromising comfort or aesthetics.
Because smart glasses are worn directly on the user’s face, battery size, weight, safety, and energy density become critical design considerations.
Challenges of Smart Glasses Battery Design
Limited Internal Space
Smart glasses provide very little room for battery installation.
Challenges include:
- Compact dimensions
- Thin profiles
- Complex internal layouts
Lightweight Requirements
Battery weight directly impacts wearing comfort.
Manufacturers require:
- Ultra-light batteries
- High energy density
- Optimized battery placement
Longer Runtime Expectations
Consumers expect all-day operation.
Battery systems must support:
- Audio playback
- AI processing
- Camera operation
- Wireless connectivity
Safety & Thermal Management
Battery safety is essential because the device is worn close to the face.
Manufacturers prioritize:
- Low heat generation
- Stable performance
- Enhanced safety protection
Typical Battery Specifications for Smart Glasses
| Parameter | Typical Range |
|---|---|
| Voltage | 3.7V – 3.85V |
| Capacity | 20mAh – 1000mAh |
| Thickness | 1.0mm – 6.0mm |
| Battery Type | LiPo / Semi-Solid Battery |
| Shape | Standard / Curved / Custom |
| Cycle Life | 300–800 Cycles |
| Protection Circuit | Optional |
| Smart Fuel Gauge | Optional |
Please feel free to contact us for more information and customized battery solutions for your project.
Ultra narrow LiPo batteries are specially designed for electronic devices with extremely limited installation space. Featuring a slim width and compact profile, these batteries are widely used in smart glasses, wearable electronics, smart pens, medical devices, tracking systems, and other miniature electronic products.
Compared with standard lithium polymer batteries, ultra narrow LiPo batteries can be integrated into thin and elongated structures such as smart glasses temples, wearable bands, compact sensors, and portable electronic modules. Their optimized design helps maximize internal space utilization while maintaining reliable power output and long operating time.
Key Features
- Ultra narrow width for compact product designs
- High energy density for extended runtime
- Lightweight construction for improved user comfort
- Custom dimensions available to fit unique device structures
- Stable performance and long cycle life
- Optional PCM/BMS protection solutions
Ultra Narrow Lipo Batteries List
| Model | Voltage(V) | Capacity(mAh) | Cell size(T*W*L)mm |
|---|---|---|---|
| 200815 | 3.7 | 9 | 2*8*15 |
| 201030 | 3.7 | 50 | 2*10*30 |
| 281024 | 3.7 | 40 | 2.8*10*24 |
| 300810 | 3.7 | 8 | 3*8*10 |
| 300812 | 3.7 | 15 | 3*8*12 |
| 300816 | 3.7 | 20 | 3*8*16 |
| 300822 | 3.7 | 32 | 3*8*22 |
| 300830 | 3.7 | 55 | 3*8*30 |
| 300927 | 3.7 | 55 | 3*9*27 |
| 301010 | 3.7 | 20 | 3*10*10 |
| 301012 | 3.7 | 25 | 3*10*12 |
| 301020 | 3.7 | 40 | 3*10*20 |
| 301030 | 3.7 | 70 | 3*10*30 |
| 350725 | 3.7 | 40 | 3.5*7*25 |
| 350830 | 3.7 | 60 | 3.5*8*30 |
| 350835 | 3.7 | 80 | 3.5*8*35 |
| 351015 | 3.7 | 30 | 3.5*10*15 |
| 351020 | 3.7 | 55 | 3.5*10*20 |
| 400810 | 3.7 | 15 | 4*8*10 |
| 400830 | 3.7 | 80 | 4*8*30 |
| 400835 | 3.7 | 100 | 4*8*35 |
| 400920 | 3.7 | 60 | 4*9*20 |
| 400930 | 3.7 | 90 | 4*9*30 |
| 400940 | 3.7 | 120 | 4*9*40 |
| 401010 | 3.7 | 25 | 4*10*10 |
| 401012 | 3.7 | 30 | 4*10*12 |
| 401015 | 3.7 | 40 | 4*10*15 |
| 401020 | 3.7 | 55 | 4*10*20 |
| 401025 | 3.7 | 75 | 4*10*25 |
| 401030 | 3.7 | 90 | 4*10*30 |
| 401035 | 3.7 | 110 | 4*10*35 |
| 401050 | 3.7 | 160 | 4*10*50 |
| 401130 | 3.7 | 110 | 4*11*30 |
| 500830 | 3.7 | 110 | 5*8*30 |
| 501010 | 3.7 | 35 | 5*10*10 |
| 501015 | 3.7 | 50 | 5*10*15 |
| 501030 | 3.7 | 120 | 5*10*30 |
| 501035 | 3.7 | 130 | 5*10*35 |
| 501040 | 3.7 | 180 | 5*10*40 |
| 501130 | 3.7 | 150 | 5*11*30 |
| 501145 | 3.7 | 250 | 5*11*45 |
| 601015 | 3.7 | 60 | 6*10*15 |
| 601030 | 3.7 | 150 | 6*10*30 |
| 601040 | 3.7 | 200 | 6*10*40 |
| 601045 | 3.7 | 260 | 6*10*45 |

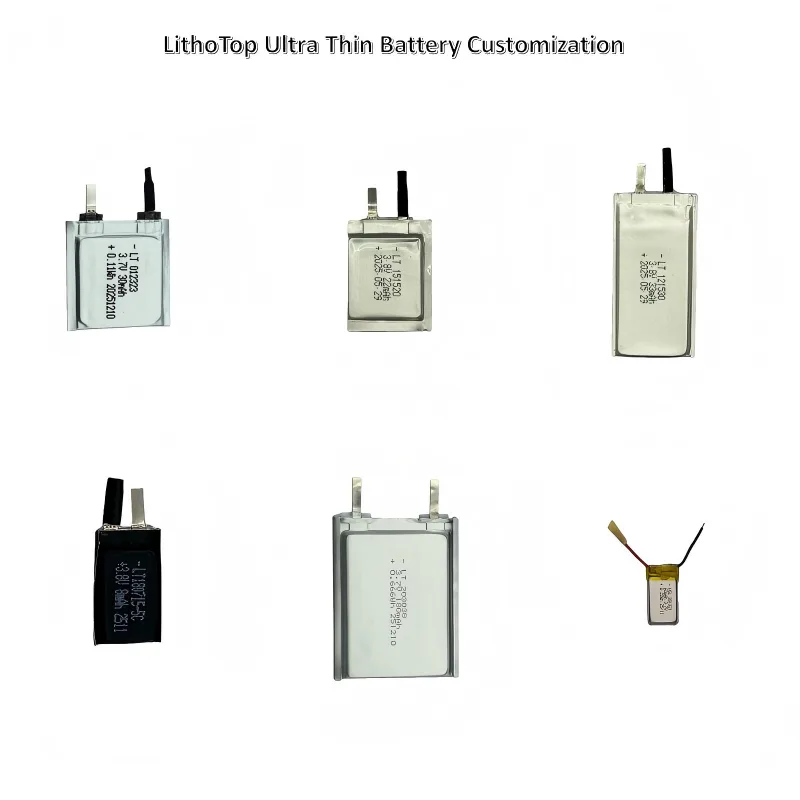

Ultra-thin lithium polymer batteries are currently the most widely used power solution for smart glasses, AI glasses, and audio glasses due to their compact size and lightweight design.
Typical Capacities:
- 20mAh
- 50mAh
- 100mAh
- 150mAh
- 300mAh
- 500mAh
Typical Thickness:
- 1.0mm
- 1.5mm
- 2.0mm
- 3.0mm
Ultra Thin Lipo Batteries List
| Model | Voltage(V) | Capacity | Cell size(T*W*L)mm |
|---|---|---|---|
| 042040 | 3.7 | 8 | 0.4*20*40 |
| 042255 | 3.7 | 24 | 0.4*22*55 |
| 062550 | 3.7 | 40 | 0.6*25*50 |
| 072738 | 3.8 | 38 | 0.7*27*38 |
| 084545 | 3.7 | 110 | 0.8*45*45 |
| 012323 | 3.7 | 30 | 1*23*23 |
| 013040 | 3.7 | 80 | 1*30*40 |
| 013050 | 3.7 | 100 | 1*30*50 |
| 014348 | 3.7 | 130 | 1*43*48 |
| 014460 | 3.7 | 180 | 1*44*60 |
| 015253 | 3.7 | 180 | 1*52*53 |
| 015362 | 3.7 | 250 | 1*53*62 |
| 123030 | 3.7 | 80 | 1.2*30*30 |
| 126070 | 3.7 | 300 | 1.2*60*70 |
| 132939 | 3.7 | 90 | 1.3*29*39 |
| 153040 | 3.7 | 110 | 1.5*30*40 |
| 155075 | 3.7 | 350 | 1.5*50*75 |
| 155776 | 3.7 | 480 | 1.5*57*76 |
| 163050 | 3.7 | 160 | 1.6*30*50 |
| 191622 | 3.7 | 35 | 1.9*16*22 |

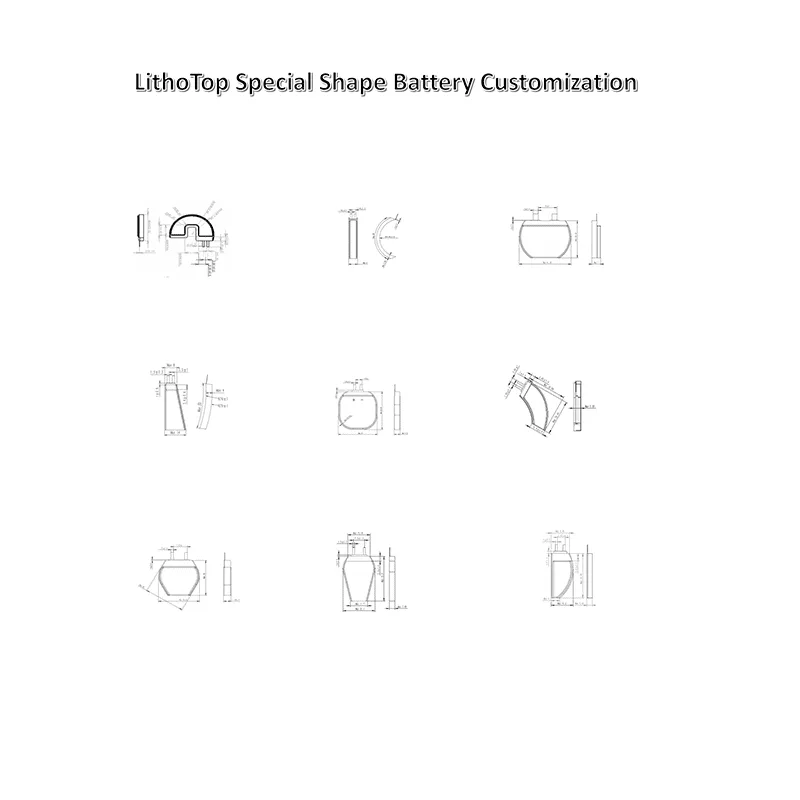

Premium smart glasses manufacturers increasingly adopt customized battery designs to optimize internal layouts and maximize battery capacity.
Available Shapes:
- L Shape
- U Shape
- Arc Shape
- Semi-Curved Design
Benefits:
- Maximize internal space
- Reduce overall device size
- Improve wearing comfort
Special-shape Smartband Batteries List
| Model | Voltage(V) | Capacity(mAh) | Cell Dimension(mm) | Shape |
|---|---|---|---|---|
| 581820 | 3.8 | 170 | 5.8*18*20 | Oval |
| 150725 | 3.8 | 19 | 1.5*7*25 | Curve |
| 473422 | 3.7 | 190 | 4.7*34*22 | C |
| 401430 | 3.7 | 105 | 4*14*30 | Trapezoid |
| 412726 | 3.8 | 310 | 4.1*27*26 | U |
| 602932 | 3.7 | 280 | 6*29*32 | Fan |
| 402220 | 3.7 | 120 | 4*22*20 | Irregular Hexagon |
| 241020 | 3.8 | 30 | 2.4*10*20 | Moon |
| 432421 | 3.8 | 155 | 4.3*24*21 | Vase |
Want a different Wearable batteries? Contact us now for your special needs.
