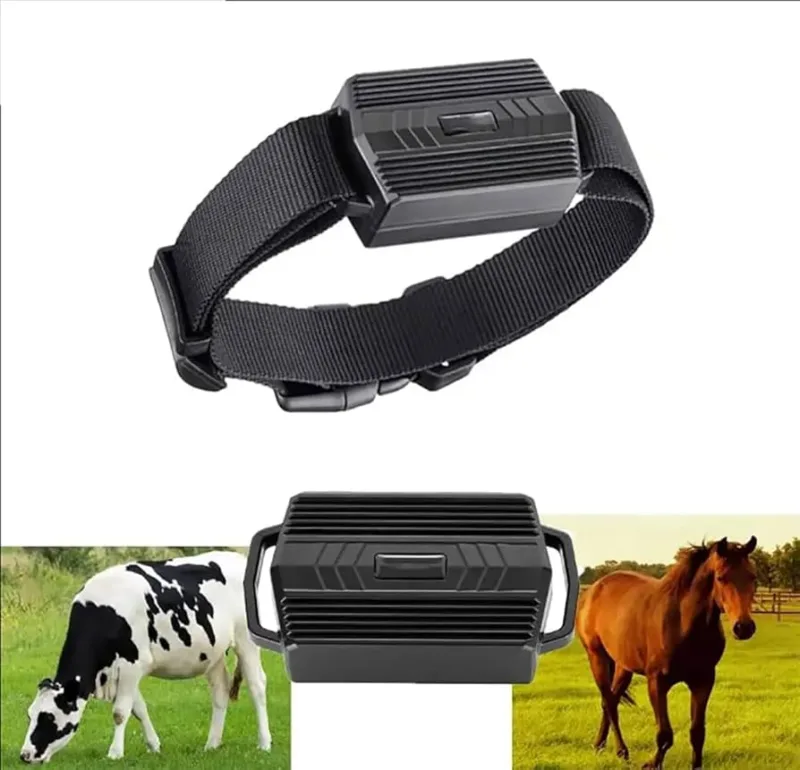

Animal tracking technologies are widely used in wildlife conservation, livestock management, pet monitoring, scientific research, and agricultural applications.
Modern tracking devices rely on GPS, satellite communication, wireless sensors, and IoT technologies to provide real-time location and behavioral data. Battery performance directly impacts tracking duration, reliability, and maintenance costs.
LithoTop provides customized lithium battery solutions engineered to support long-term animal tracking applications in demanding outdoor environments.
Challenges of Animal Tracker Battery Design
Long Operating Time Requirements
Many tracking devices are deployed in remote locations for months or even years. Battery systems must continuously support GPS positioning, wireless communication, sensor operation, and data transmission while maintaining reliable performance.
Compact and Lightweight Design
Excessive device weight may affect animal behavior and movement. Manufacturers require lightweight batteries, compact dimensions, and optimized energy density to maximize comfort and usability.
Harsh Environmental Conditions
Animal trackers are frequently exposed to rain, dust, humidity, vibration, shock, and extreme temperatures. Battery reliability is critical for maintaining uninterrupted operation.
Low Maintenance Requirements
Frequent battery replacement increases operational costs and may disturb tracked animals. Long-life battery solutions are preferred for both wildlife conservation and commercial monitoring applications.
Animal Tracker Battery Features
Long Runtime Performance
Optimized for long-term GPS tracking and remote monitoring applications.
High Energy Density
More operating time within a compact device footprint.
Lightweight Design
Minimize impact on animal movement and behavior.
Weather Resistance Support
Compatible with ruggedized outdoor tracking systems.
Custom Battery Design
Custom voltage, capacity, dimensions, connectors, and protection circuits available.
Typical Battery Specifications for Animal Trackers
| Parameter | Typical Range |
|---|---|
| Voltage | 3.7V – 14.8V |
| Capacity | 200mAh – 10000mAh |
| Battery Type | LiPo / Li-ion |
| Shape | Standard / Ultra-Thin / Custom |
| Operating Temperature | -20°C to 60°C |
| Cycle Life | 300–1000 Cycles |
| Protection Circuit | Optional |
Please feel free to contact us for more information and customized battery solutions for your project.
Lightweight and compact lithium polymer batteries optimized for GPS tracking and wireless communication devices.
Features
- Lightweight design
- Compact size
- High energy density
- Rechargeable solution
Suitable For
- GPS collars
- Pet trackers
- Livestock monitoring devices
5mm Lipo Batteries List
| Model | Voltage(V) | Capacity(mAh) | Cell Size(T*W*L)mm | Shape |
|---|---|---|---|---|
| 500830 | 3.7 | 110 | 5*8*30 | Pouch |
| 500922 | 3.7 | 65 | 5*9*22 | Pouch |
| 500935 | 3.7 | 130 | 5*9*35 | Pouch |
| 501010 | 3.7 | 35 | 5*10*10 | Pouch |
| 501012 | 3.7 | 40 | 5*10*12 | Pouch |
| 501015 | 3.7 | 50 | 5*10*15 | Pouch |
| 501030 | 3.7 | 120 | 5*10*30 | Pouch |
| 501035 | 3.7 | 130 | 5*10*35 | Pouch |
| 501038 | 3.7 | 160 | 5*10*38 | Pouch |
| 501040 | 3.7 | 180 | 5*10*40 | Pouch |
| 501114 | 3.7 | 50 | 5*11*14 | Pouch |
| 501120 | 3.7 | 100 | 5*11*20 | Pouch |
| 501130 | 3.7 | 150 | 5*11*30 | Pouch |
| 501145 | 3.7 | 250 | 5*11*45 | Pouch |
| 501215 | 3.7 | 60 | 5*12*15 | Pouch |
| 501220 | 3.7 | 100 | 5*12*20 | Pouch |
| 501225 | 3.7 | 120 | 5*12*25 | Pouch |
| 501228 | 3.7 | 150 | 5*12*28 | Pouch |
| 501230 | 3.7 | 130 | 5*12*30 | Pouch |
| 501235 | 3.7 | 150 | 5*12*35 | Pouch |
| 501240 | 3.7 | 200 | 5*12*40 | Pouch |
| 501245 | 3.7 | 260 | 5*12*45 | Pouch |
| 501314 | 3.7 | 65 | 5*13*14 | Pouch |
| 501321 | 3.7 | 105 | 5*13*21 | Pouch |
| 501323 | 3.7 | 120 | 5*13*23 | Pouch |
| 501332 | 3.7 | 170 | 5*13*32 | Pouch |
| 501420 | 3.7 | 95 | 5*14*20 | Pouch |
| 501447 | 3.7 | 280 | 5*14*47 | Pouch |
| 501515 | 3.7 | 80 | 5*15*15 | Pouch |
| 501520 | 3.7 | 125 | 5*15*20 | Pouch |
| 501522 | 3.7 | 130 | 5*15*22 | Pouch |
| 501524 | 3.7 | 170 | 5*15*24 | Pouch |
| 501530 | 3.7 | 200 | 5*15*30 | Pouch |
| 501535 | 3.7 | 240 | 5*15*35 | Pouch |
| 501622 | 3.7 | 140 | 5*16*22 | Pouch |
| 501645 | 3.7 | 340 | 5*16*45 | Pouch |
| 501723 | 3.7 | 160 | 5*17*23 | Pouch |
| 501725 | 3.8 | 230 | 5*17*25 | Pouch |
| 501730 | 3.7 | 200 | 5*17*30 | Pouch |
| 501735 | 3.7 | 300 | 5*17*35 | Pouch |
| 501818 | 3.7 | 150 | 5*18*18 | Pouch |
| 501825 | 3.7 | 180 | 5*18*25 | Pouch |
| 501880 | 3.7 | 300 | 5*18*80 | Pouch |
| 502020 | 3.7 | 150 | 5*20*20 | Pouch |
| 502025 | 3.7 | 200 | 5*20*25 | Pouch |
| 502028 | 3.7 | 250 | 5*20*28 | Pouch |
| 502030 | 3.7 | 320 | 5*20*30 | Pouch |
| 502035 | 3.7 | 350 | 5*20*35 | Pouch |
| 502035 | 3.8 | 400 | 5*20*35 | Pouch |
| 502040 | 3.7 | 400 | 5*20*40 | Pouch |
| 502045 | 3.7 | 450 | 5*20*45 | Pouch |
| 502050 | 3.7 | 500 | 5*20*50 | Pouch |
| 502060 | 3.7 | 600 | 5*20*60 | Pouch |
| 502065 | 3.7 | 700 | 5*20*65 | Pouch |
| 502080 | 3.7 | 900 | 5*20*80 | Pouch |
| 502235 | 3.7 | 365 | 5*22*35 | Pouch |
| 502243 | 3.7 | 460 | 5*22*43 | Pouch |
| 502248 | 3.7 | 520 | 5*22*48 | Pouch |
| 502260 | 3.7 | 600 | 5*22*60 | Pouch |
| 502270 | 3.7 | 900 | 5*22*70 | Pouch |
| 502325 | 3.7 | 260 | 5*23*25 | Pouch |
| 502525 | 3.7 | 300 | 5*25*25 | Pouch |
| 502530 | 3.7 | 350 | 5*25*30 | Pouch |
| 502535 | 3.7 | 450 | 5*25*35 | Pouch |
| 502540 | 3.7 | 500 | 5*25*40 | Pouch |
| 502560 | 3.7 | 900 | 5*25*60 | Pouch |
| 502728 | 3.7 | 400 | 5*27*28 | Pouch |
| 502828 | 3.8 | 500 | 5*28*28 | Pouch |
| 503030 | 3.7 | 400 | 5*30*30 | Pouch |
| 503035 | 3.7 | 520 | 5*30*35 | Pouch |
| 503040 | 3.7 | 600 | 5*30*40 | Pouch |
| 503048 | 3.7 | 750 | 5*30*48 | Pouch |
| 503065 | 3.7 | 1200 | 5*30*65 | Pouch |
| 503450 | 3.7 | 1000 | 5*34*50 | Pouch |
| 503560 | 3.7 | 1200 | 5*35*60 | Pouch |
| 503759 | 3.7 | 1200 | 5*37*59 | Pouch |
| 504045 | 3.7 | 900 | 5*40*45 | Pouch |
| 504065 | 3.7 | 1500 | 5*40*65 | Pouch |
| 504070 | 3.7 | 1200 | 5*40*70 | Pouch |
| 505050 | 3.7 | 1500 | 5*50*50 | Pouch |
| 505060 | 3.7 | 2000 | 5*50*60 | Pouch |
| 505080 | 3.7 | 2200 | 5*50*80 | Pouch |
| 5050100 | 3.7 | 4000 | 5*50*100 | Pouch |
| 505573 | 3.7 | 2500 | 5*55*73 | Pouch |
| 506090 | 3.7 | 3000 | 5*60*90 | Pouch |
| 521012 | 3.7 | 45 | 5.2*10*12 | Pouch |
| 521220 | 3.7 | 90 | 5.2*12*20 | Pouch |
| 521417 | 3.7 | 100 | 5.2*14*17 | Pouch |
| 521525 | 3.7 | 170 | 5.2*15*25 | Pouch |
| 522030 | 3.7 | 280 | 5.2*20*30 | Pouch |
| 522035 | 3.8 | 400 | 5.2*20*35 | Pouch |
| 522540 | 3.8 | 680 | 5.2*25*40 | Pouch |
| 522830 | 3.8 | 560 | 5.2*28*30 | Pouch |
| 523450 | 3.8 | 1250 | 5.2*34*50 | Pouch |
| 531525 | 3.7 | 180 | 5.3*15*25 | Pouch |
| 551015 | 3.7 | 55 | 5.5*10*15 | Pouch |
| 551045 | 3.7 | 250 | 5.5*10*45 | Pouch |
| 551220 | 3.7 | 110 | 5.5*12*20 | Pouch |
| 551225 | 3.7 | 160 | 5.5*12*25 | Pouch |
| 551235 | 3.7 | 180 | 5.5*12*35 | Pouch |
| 551240 | 3.7 | 230 | 5.5*12*40 | Pouch |
| 551245 | 3.7 | 250 | 5.5*12*45 | Pouch |
| 551520 | 3.7 | 150 | 5.5*15*20 | Pouch |
| 551525 | 3.7 | 180 | 5.5*15*25 | Pouch |
| 551535 | 3.7 | 240 | 5.5*15*35 | Pouch |
| 551730 | 3.7 | 220 | 5.5*17*30 | Pouch |
| 551735 | 3.7 | 320 | 5.5*17*35 | Pouch |
| 552035 | 3.7 | 350 | 5.5*20*35 | Pouch |
| 552040 | 3.7 | 400 | 5.5*20*40 | Pouch |
| 552065 | 3.7 | 800 | 5.5*20*65 | Pouch |
| 552225 | 3.7 | 250 | 5.5*22*25 | Pouch |
| 552230 | 3.7 | 320 | 5.5*22*30 | Pouch |
| 552240 | 3.7 | 400 | 5.5*22*40 | Pouch |
| 552248 | 3.7 | 600 | 5.5*22*48 | Pouch |
| 552530 | 3.7 | 350 | 5.5*25*30 | Pouch |
| 552535 | 3.7 | 450 | 5.5*25*35 | Pouch |
| 552548 | 3.7 | 600 | 5.5*25*48 | Pouch |
| 552728 | 3.7 | 400 | 5.5*27*28 | Pouch |
| 553035 | 3.7 | 600 | 5.5*30*35 | Pouch |
| 552530 | 3.7 | 350 | 5.5*25*30 | Pouch |
| 552548 | 3.7 | 700 | 5.5*25*48 | Pouch |
| 552728 | 3.7 | 400 | 5.5*27*28 | Pouch |
| 553035 | 3.7 | 600 | 5.5*30*35 | Pouch |
| 555056 | 3.7 | 2100 | 5.5*50*56 | Pouch |
| 555075 | 3.7 | 2500 | 5.5*55*75 | Pouch |
| 5565113 | 3.7 | 5000 | 5.5*65*113 | Pouch |
| 581015 | 3.7 | 60 | 5.8*10*15 | Pouch |
| 581525 | 3.7 | 180 | 5.8*15*25 | Pouch |
| 582525 | 3.7 | 350 | 5.8*25*25 | Pouch |
Designed for miniaturized tracking devices where space and weight limitations are critical.
Ideal For
- Ear tags
- Bird trackers
- Small animal monitoring devices
Benefits
- Slim profile
- Reduced device weight
- Easy integration
3mm Thin Lipo Batteries List
| Model | Voltage(V) | Capacity(mAh) | Cell Size(T*W*L)mm | Shape |
|---|---|---|---|---|
| 300810 | 3.7 | 8 | 3*8*10 | Pouch |
| 300812 | 3.7 | 15 | 3*8*12 | Pouch |
| 300816 | 3.7 | 20 | 3*8*16 | Pouch |
| 300830 | 3.7 | 55 | 3*8*30 | Pouch |
| 300927 | 3.7 | 55 | 3*9*27 | Pouch |
| 301010 | 3.7 | 20 | 3*10*10 | Pouch |
| 301012 | 3.7 | 25 | 3*10*12 | Pouch |
| 301020 | 3.7 | 40 | 3*10*20 | Pouch |
| 301030 | 3.7 | 70 | 3*10*30 | Pouch |
| 301215 | 3.7 | 30 | 3*12*15 | Pouch |
| 301230 | 3.7 | 90 | 3*12*30 | Pouch |
| 301430 | 3.7 | 120 | 3*14*30 | Pouch |
| 301525 | 3.7 | 80 | 3*15*25 | Pouch |
| 301530 | 3.7 | 100 | 3*15*30 | Pouch |
| 301535 | 3.7 | 125 | 3*15*35 | Pouch |
| 301725 | 3.7 | 95 | 3*17*25 | Pouch |
| 301730 | 3.7 | 110 | 3*17*30 | Pouch |
| 301745 | 3.7 | 180 | 3*17*45 | Pouch |
| 302020 | 3.7 | 90 | 3*20*20 | Pouch |
| 302025 | 3.7 | 110 | 3*20*25 | Pouch |
| 302030 | 3.7 | 150 | 3*20*30 | Pouch |
| 302035 | 3.7 | 180 | 3*20*35 | Pouch |
| 302040 | 3.7 | 200 | 3*20*40 | Pouch |
| 302045 | 3.7 | 220 | 3*20*45 | Pouch |
| 302050 | 3.7 | 250 | 3*20*50 | Pouch |
| 302250 | 3.7 | 300 | 3*22*50 | Pouch |
| 302323 | 3.7 | 110 | 3*23*23 | Pouch |
| 302526 | 3.7 | 160 | 3*25*26 | Pouch |
| 302530 | 3.7 | 200 | 3*25*30 | Pouch |
| 302540 | 3.7 | 280 | 3*25*40 | Pouch |
| 303030 | 3.7 | 250 | 3*30*30 | Pouch |
| 303035 | 3.7 | 300 | 3*30*35 | Pouch |
| 303040 | 3.7 | 320 | 3*30*40 | Pouch |
| 303048 | 3.7 | 400 | 3*30*48 | Pouch |
| 303060 | 3.7 | 500 | 3*30*60 | Pouch |
| 303065 | 3.7 | 600 | 3*30*65 | Pouch |
| 303450 | 3.7 | 500 | 3*34*50 | Pouch |
| 304040 | 3.7 | 480 | 3*40*40 | Pouch |
| 304045 | 3.7 | 500 | 3*40*45 | Pouch |
| 304050 | 3.7 | 700 | 3*40*50 | Pouch |
| 304085 | 3.7 | 1000 | 3*40*85 | Pouch |
| 305065 | 3.7 | 1000 | 3*50*65 | Pouch |
| 306090 | 3.7 | 2000 | 3*60*90 | Pouch |
| 307095 | 3.7 | 2500 | 3*70*95 | Pouch |
| 350725 | 3.7 | 40 | 3.5*7*25 | Pouch |
| 350830 | 3.7 | 60 | 3.5*8*30 | Pouch |
| 350926 | 3.7 | 60 | 3.5*9*26 | Pouch |
| 350935 | 3.7 | 90 | 3.5*9*35 | Pouch |
| 351015 | 3.7 | 30 | 3.5*10*15 | Pouch |
| 351020 | 3.7 | 55 | 3.5*10*20 | Pouch |
| 352020 | 3.7 | 100 | 3.5*20*20 | Pouch |
| 352030 | 3.7 | 195 | 3.5*20*30 | Pouch |
| 352035 | 3.7 | 230 | 3.5*20*35 | Pouch |
| 352325 | 3.7 | 180 | 3.5*23*25 | Pouch |
| 353030 | 3.7 | 325 | 3.5*30*30 | Pouch |
| 383450 | 3.7 | 650 | 3.8*34*50 | Pouch |
| 393048 | 3.7 | 600 | 3.9*30*48 | Pouch |
We support a wide variety of customized battery shapes, including C-shape, D-shape, curve shape, U-shape, fan shape, moon shape, trapezoid shape, irregular hexagon shape, and other irregular structures according to customer requirements and device dimensions.
Our special-shaped batteries are manufactured using advanced production technology and high-quality lithium polymer cells, ensuring stable voltage output, high energy density, low internal resistance, and reliable safety performance.
- Customized irregular battery shapes for unique product designs
- Efficient internal space utilization
- Ultra-thin and lightweight structure
- High energy density and stable performance
- Low self-discharge and long cycle life
- Optional curved and flexible battery designs
- Reliable safety performance with PCM/BMS protection
- Flexible OEM & ODM customization support
Special-shape Smartband Batteries List
| Model | Voltage(V) | Capacity(mAh) | Cell Dimension(mm) | Shape |
|---|---|---|---|---|
| 581820 | 3.8 | 170 | 5.8*18*20 | Oval |
| 150725 | 3.8 | 19 | 1.5*7*25 | Curve |
| 473422 | 3.7 | 190 | 4.7*34*22 | C |
| 401430 | 3.7 | 105 | 4*14*30 | Trapezoid |
| 412726 | 3.8 | 310 | 4.1*27*26 | U |
| 602932 | 3.7 | 280 | 6*29*32 | Fan |
| 402220 | 3.7 | 120 | 4*22*20 | Irregular Hexagon |
| 241020 | 3.8 | 30 | 2.4*10*20 | Moon |
| 432421 | 3.8 | 155 | 4.3*24*21 | Vase |
Want a different Wearable batteries? Contact us now for your special needs.
