Drone light shows are an eco-friendly and cost-effective alternative to traditional fireworks. They use hundreds of synchronized drones with advanced sensors and precise control systems to create dynamic aerial visuals. These shows are widely used at festivals, concerts, trade fairs, corporate events, and brand launches. Batteries for light show drones must deliver high capacity, stable output, fast charging, low weight, and high discharge performance to ensure safe, consistent, and long-lasting flights.
Industrial Battery Solutions for Light Show Drones
Light show drones require highly synchronized, lightweight, and stable battery systems to support large-scale UAV formations, nighttime performances, and precision flight control.
Unlike industrial spraying drones, light show drones prioritize:
- Lightweight battery structure
- Stable voltage consistency
- Long flight synchronization
- Fast charging capability
- High cycle reliability
- Uniform battery performance across fleets
These drone swarm applications are widely used in:
- Drone light shows
- Entertainment performances
- Festival events
- Tourism attractions
- Advertising displays
- Stadium events
What Batteries Are Commonly Used in Light Show Drones?
Most light show drones use:
1. High Energy Density LiPo Batteries
The most common solution for drone swarm systems.
Typical Features:
- Lightweight design
- High discharge stability
- Excellent flight responsiveness
- Compact dimensions
- High consistency between packs
Common Configurations:
- 3S (11.1V)
- 4S (14.8V)
- 6S (22.2V)
Typical Capacity:
3000mAh – 12000mAh
2. High-Cycle-Life Li-ion Batteries
Used for extended operation and lower replacement costs.
Advantages:
- Longer cycle life
- Reduced operating cost
- Better energy density
- Longer endurance
Suitable for:
- Large drone fleets
- Frequent commercial performances
- Rental drone systems
3. Smart Battery Systems
Advanced drone show companies increasingly use smart batteries with:
- Battery health monitoring
- Voltage balancing
- Flight data communication
- Remaining capacity prediction
- Smart charging management
Communication options:
- CAN Bus
- SMBus
- UART
Typical Battery Specifications for Light Show Drones
| Parameter | Typical Range |
|---|---|
| Voltage | 11.1V – 22.2V |
| Configuration | 3S – 6S |
| Capacity | 3000mAh – 12000mAh |
| Discharge Rate | 10C – 25C |
| Continuous Current | 30A – 150A |
| Battery Type | LiPo / Li-ion |
| Cycle Life | 300–1000 cycles |
| Smart BMS | Optional |
Why Drone Show Companies Choose LithoTop
High Consistency Manufacturing
Critical for synchronized drone fleets.
Lightweight Custom Design
Optimized for longer flight time.
OEM & Custom Battery Support
Voltage, dimensions, connectors, and communication protocols customizable.
Fast Prototype Development
Ideal for drone show startups and commercial operators.
Lightweight LiPo Battery Packs
LithoTop designs custom lightweight LiPo battery packs optimized for advanced UAV and drone applications, ensuring stable performance in demanding aerial operations.
Applications:
- Drone swarm systems
- Entertainment UAVs
- LED light show drones
- Formation flight drones
Features:
- Lightweight pouch cell structure
- Stable discharge performance
- Optimized energy density
- High consistency manufacturing
- Custom dimensions available
High Discharge Battery(3.7V/3.8V/3.85V)
| Typical capacity(mAh) | Voltage(V) | Cells | C Rate | Dimensions L*W*H(mm) | Weight(g) |
|---|---|---|---|---|---|
| 5700 | 22.2 | 6S | 70C | 136*44*59.5 | 746 |
| 6500 | 22.2 | 6S | 70C | 157*45*56 | 776 |
| 8000 | 22.2 | 6S | 50C | 170*61*48 | 1000 |
| 10000 | 22.2 | 6S | 50C | 170*61*59 | 1235 |
| 12000 | 22.8 | 6S | 25C | 185*76*45 | 1300 |
| 16000 | 22.2 | 6S | 25C | 188*76*66 | 1850 |
| 44.4 | 12S | 25C | 188*76*131 | 3700 | |
| 22000 | 22.2 | 6S | 25C | 205*92*66 | 2600 |
| 44.4 | 12S | 25C | 205*92*131 | 5200 | |
| 22.8 | 6S | 25C | 205*97*54 | 2300 | |
| 45.6 | 12S | 25C | 205*97*108 | 4570 | |
| 30000 | 22.8 | 6S | 15C | 227*107*66 | 3270 |
| 45.6 | 12S | 15C | 227*107*131 | 6480 | |
| 34000 | 23.1 | 6S | 8C | 230*117*56 | 3150 |
| 46.2 | 12S | 8C | 230*117*112 | 6240 | |
| 37000 | 23.1 | 6S | 8C | 230*117*68 | 3400 |
| 46.2 | 12S | 8C | 230*117*124 | 6770 | |
| 42000 | 23.1 | 6S | 8C | 230*117*68 | 3880 |
| 46.2 | 12S | 8C | 230*117*136 | 7670 | |
| 68000 | 23.1 | 6S | 8C | 230*117*112 | 6380 |
| 74000 | 23.1 | 6S | 8C | 230*117*120 | 6870 |
Smart Battery Integration
Optional smart battery features enhance system performance and enable advanced monitoring and control for UAV applications.
Features:
- CAN communication
- Battery health diagnostics
- Real-time monitoring
- Smart charging management
- Remaining power estimation

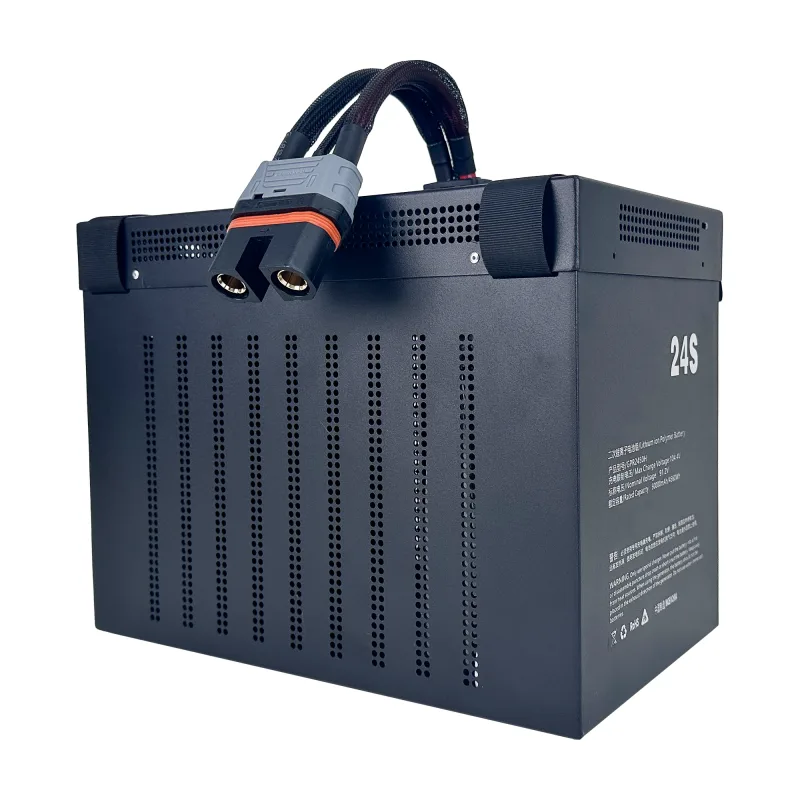

Smart BMS Battery System
| Typical capacity(mAh) | Voltage(V) | Cells | C Rate | Dimensions L*W*H(mm) | Weight(kg) |
|---|---|---|---|---|---|
| 22000 | 53.2 | 14S | 15C | 169*99*245 | 6.2 |
| 30000 | 53.2 | 14S | 15C | 239*140*302 | 9.7 |
| 50000 | 91.2 | 24S | 15C | 317*222*273 | 20 |
| 60000 | 91.2 | 24S | 15C | 317*222*273 | 23.8 |
| 50000 | 106.4 | 28S | 15C | 358*222*273 | 23 |
| 60000 | 106.4 | 28S | 15C | 358*222*273 | 30.8 |
High Consistency Cell Matching
LithoTop ensures strict cell matching processes to guarantee stable performance across multiple units.
Key Processes:
- Voltage matching
- Internal resistance matching
- Capacity consistency control
Benefits:
- Improved formation synchronization
- Enhanced flight stability
- Increased operational reliability
Semi Solid Lipo Battery (5C/10C)
| Typical capacity(mAh) | Voltage(V) | Cells | C Rate | Dimensions L*W*H(mm) | Weight(g) |
|---|---|---|---|---|---|
| 16000 | 22.2 | 6S | 5C/10C | 187*77*48 | 1390 |
| 44.4 | 12S | 5C/10C | 187*77*98 | 2690 | |
| 22000 | 21.6 | 6S | 5C/10C | 188*76*58 | 1630 |
| 22.2 | 6S | 5C/10C | 187*77*63 | 1810 | |
| 44.4 | 12S | 5C/10C | 187*77*126 | 3590 | |
| 27000 | 21.6 | 6S | 5C/10C | 205*92*52 | 1970 |
| 22.2 | 6S | 5C/10C | 205*92*60 | 2260 | |
| 44.4 | 12S | 5C/10C | 205*92*120 | 4410 | |
| 30000 | 21.6 | 6S | 5C/10C | 205*92*59 | 2200 |
| 22.2 | 6S | 5C/10C | 205*92*66 | 2490 | |
| 44.4 | 12S | 5C/10C | 205*92*132 | 4890 | |
| 32000 | 21.6 | 6S | 5C/10C | 205*92*62 | 2350 |
Want a different Wearable batteries? Contact us now for your special needs.
