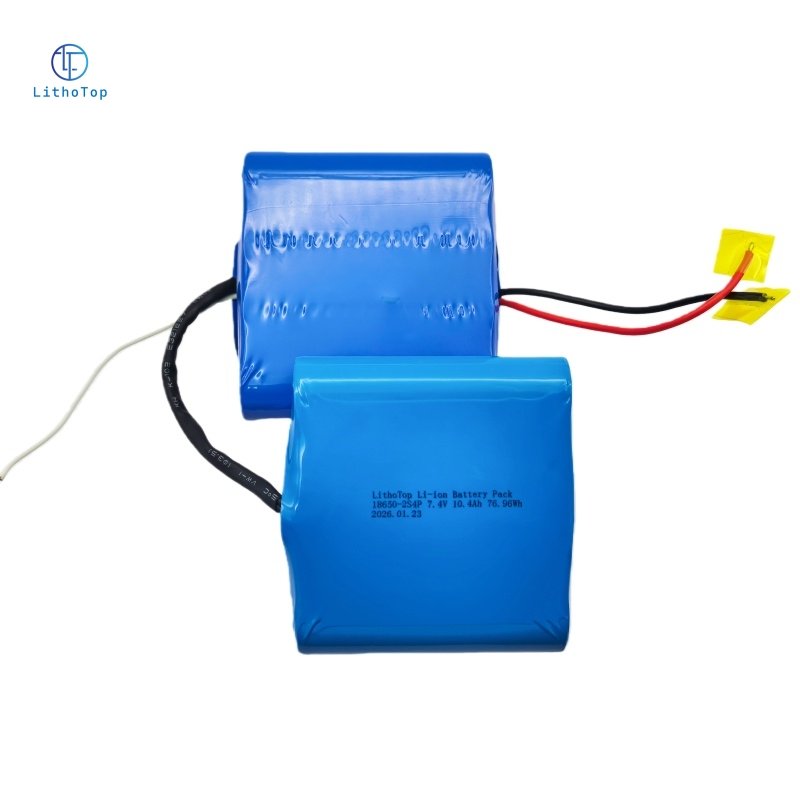

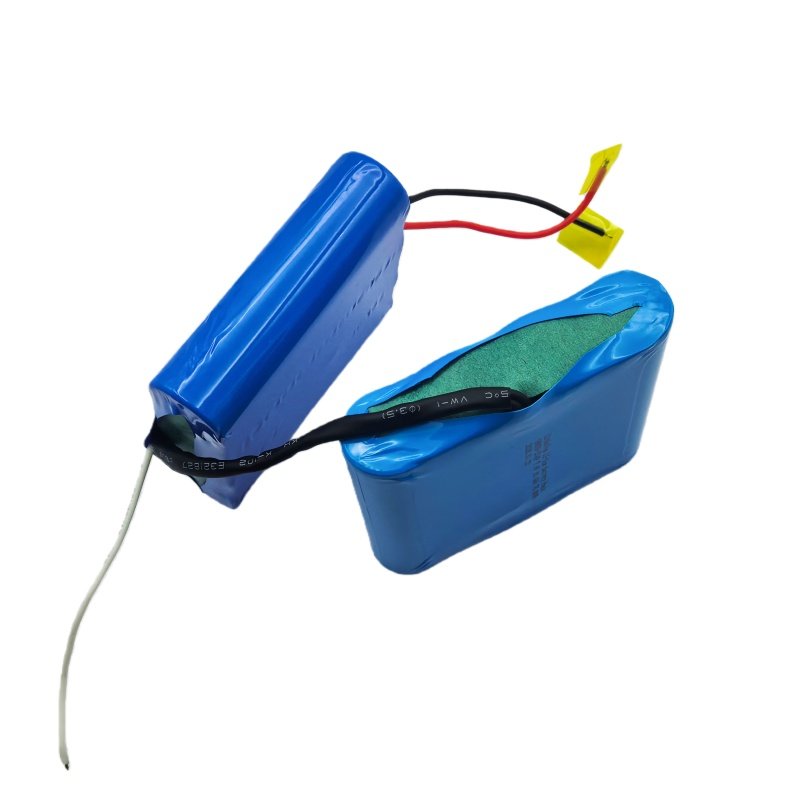

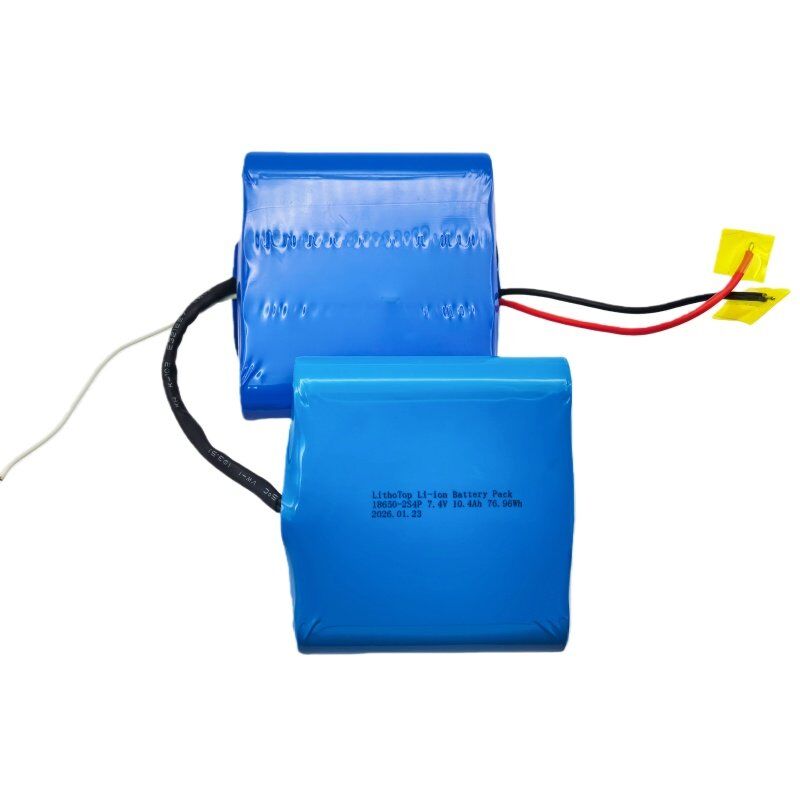

18650 Battery 2S4P 10.4Ah Rechargeable
This 2S4P 18650 lithium-ion battery pack delivers 7.4V nominal voltage and 10.4Ah high capacity, providing stable output and long runtime. Built with matched 18650 cells and professional assembly, it offers reliable performance, good cycle life, and efficient discharge, making it suitable for portable electronics, backup power, and various custom battery applications.
Additional information
| Product Type | Lithium Ion Battery Pack |
|---|---|
| Model number | 18650-2S4P |
| Voltage (Nominal) | 7.4V |
| Capacity (Nominal) | 10.4Ah |
| Dimensions | 19.5*73.5*67mm |
| Constant Discharge Current | Typically 0.5C-1C |
| Working Temperature | charge: 0-45℃; discharge: -20-60℃ |
| Certification | ISO9001/ISO14001 |
Product description
Lithium-ion battery packs are high-performance rechargeable power sources known for their high energy density, long cycle life, and stable performance. They are widely used in consumer electronics, electric vehicles, industrial equipment, and energy storage systems. Built with multiple lithium-ion cells and integrated protection circuits, these packs offer customizable voltage, capacity, and shape, ensuring safe and reliable power for various applications. At LithoTop, we provide tailor-made lithium-ion battery pack solutions to meet your exact needs—whether for mobility, IoT, or backup power systems.
Product features
High Energy Density
Delivers more power in a compact size, ideal for space-limited applications.Long Cycle Life
Supports 500–1000+ charge cycles, ensuring long-term performance and reliability.Lightweight Design
Lighter than traditional battery types, suitable for portable and mobile devices.Customizable Configuration
Available in various voltages, capacities, sizes, and shapes to match your exact requirements.Built-in Protection Circuit
Includes protection against overcharge, over-discharge, short circuit, and overcurrent for safe operation.Low Self-Discharge Rate
Maintains charge for extended periods during storage or standby use.Wide Application Range
Ideal for use in electric vehicles, drones, power tools, medical equipment, energy storage systems, and more.
Product details
NO. | Items | Specifications |
1 | Mode | 18650-2S4P |
2 | Size | 19.5*73.5*67（mm） |
3 | Charge voltage | 8.4V |
4 | Nominal voltage | 7.4V |
5 | Nominal capacity | 10400mAh |
6 | Charge current | Standard Charging:：0.5C/Rapid charge：1.0C |
7 | Standard Charging method | 0.2C（constant current）charge to 8.4V,then CV(constant voltage 8.4V)charge till charge current decline to≤0.01C |
8 | Charging time | Standard Charging：3.0hours(Ref.)/Rapid charge：2hours(Ref.) |
9 | Max.charge current | 1C（10400mA） |
10 | Max.discharge current | 1C(10400mA)|Peak 3C(31200mA) |
11 | Discharge cut-off voltage | 6V |
12 | Operating temperature | Charging：0℃~45℃/Discharging：0℃~45℃ |
13 | Storage temperature | -20℃~ +60℃ |
14 | Cell Weight | Approx：0.38kg |
Product assemble
1S2P
Nominal voltage: 3.7V |Charge voltage: 4.2V |Customized capacity(mAh):
2400mAh, 3000mAh, 3600mAh, 4000mAh, 4400mAh, 5200mAh
2S1P
Nominal voltage: 7.4V |Charge voltage: 8.4V |Customized capacity(mAh):
1800mAh, 2000mAh, 2200mAh, 2400mAh, 2600mAh, 3000mAh
1S3P
Nominal voltage: 3.7V |Charge voltage: 4.2V |Customized capacity(mAh):
3600mAh, 4500mAh, 5400mAh, 6000mAh, 6600mAh, 7800mAh
3S1P
Nominal voltage: 11.1V |Charge voltage: 12.6V |Customized capacity(mAh):
1800mAh, 2000mAh, 2200mAh, 2400mAh, 2600mAh, 3000mAh
1S4P
Nominal voltage: 3.7V |Charge voltage: 4.2V |Customized capacity(mAh):
4800mAh, 6000mAh, 7200mAh, 8000mAh, 4800mAh, 10400mAh
4S1P
Nominal voltage: 14.8V |Charge voltage: 16.8V |Customized capacity(mAh):
2000mAh, 2200mAh, 2400mAh, 2500mAh, 2600mAh, 3000mAh
1S6P
Nominal voltage: 3.7V |Charge voltage: 4.2V |Customized capacity(mAh):
7200mAh, 9000mAh, 10800mAh, 12000mAh, 13200mAh, 15600mAh
6S1P
Nominal voltage: 22.2V |Charge voltage: 25.2V |Customized capacity(mAh):
2000mAh, 2200mAh, 2400mAh, 2500mAh, 2600mAh, 3000mAh
2S3P
Nominal voltage: 7.4V |Charge voltage: 8.4V |Customized capacity(mAh):
6000mAh, 6600mAh, 7200mAh, 7500mAh, 7800mAh, 9000mAh
3S2P
Nominal voltage: 11.1V |Charge voltage: 12.6V |Customized capacity(mAh):
4000mAh, 4400mAh, 4800mAh, 5000mAh, 5200mAh, 6000mAh
Usage
Lithium battery has no memory effect and can be recharged at any time and can be used after being fully charged. However, it is not allowed to overcharge and over-discharge. Based on the characteristics of lithium battery, we sum up the maintenance skills of lithium battery as the following two points:
1. Do not let the lithium battery charge less than 10% (it is recommended to start charging below 20%).
2. When the charge of lithium battery is 1%, it can be called “deep discharge”, and “deep discharge” must be avoided. Because the “deep discharge” directly affects the service life of lithium batteries, it directly leads to the failure of charging.
