What are the methods of testing 21700 size Li ion cells?

You've sourced 21700 cells for your new product, but how can you be sure they perform as promised? Poor cell quality can lead to product failure, recalls, and a damaged reputation.

Testing 21700 Li-ion cells¹ involves a multi-stage process, including basic performance tests (capacity, internal resistance), comprehensive safety tests (overcharge, short circuit), cycle life analysis, and automated sorting to ensure batch consistency. These tests are essential for quality control.

For a product manager like Jacky, a battery isn't just a component; it's the heart of the product. Simply trusting a datasheet is not enough. I've worked with many clients who learned the hard way that not all cells are created equal, even if they look the same. Proper testing is the only way to validate that the cells you've chosen will deliver the safety and performance your customers expect. It's the foundation of a reliable product.

How to test a Li-ion battery with a multimeter?

You have a 21700 cell and a multimeter on your desk. You wonder if this simple tool can tell you anything useful or if you are just scratching the surface.

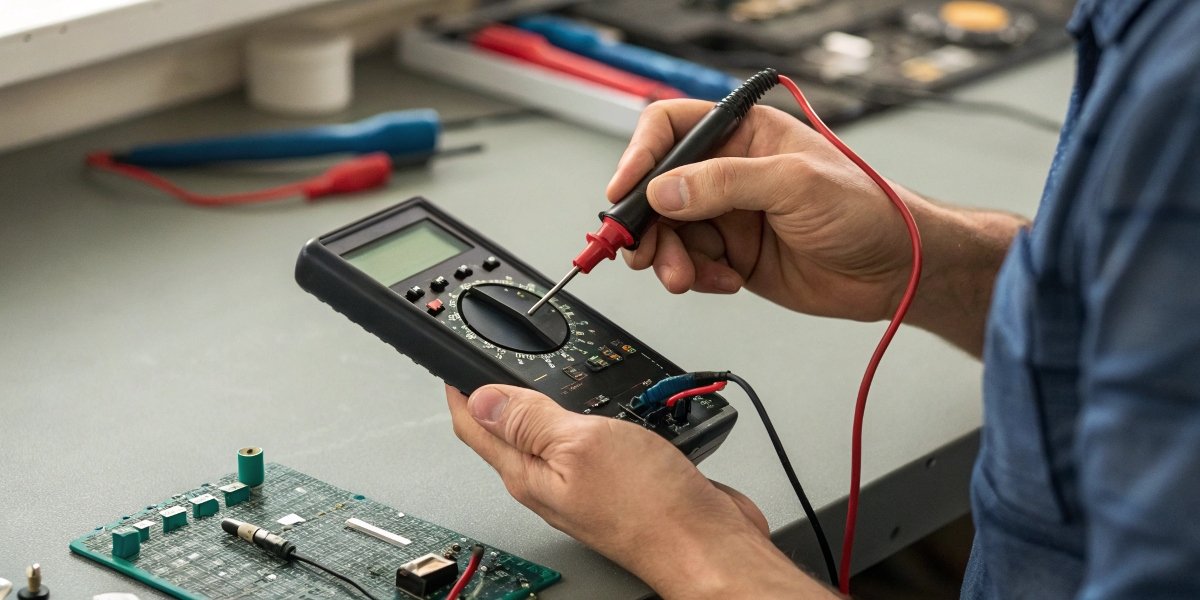

A multimeter can only perform a basic health check. You can measure the cell's voltage to determine its state of charge, but you cannot test its true capacity (Ah) or internal resistance (mΩ), which are critical performance metrics.

A multimeter is a great first-step tool, but its limitations are important to understand. You can set it to DC Voltage mode to check the cell's charge. A fully charged 21700 will be around 4.2V, storage charge is about 3.7V, and a fully discharged cell is near 3.0V. If you measure a cell that's significantly below 3.0V, it has likely been over-discharged and may be permanently damaged. While this voltage reading is a useful snapshot, it tells you nothing about how the battery performs under load. It can't tell you if a 5000mAh cell can actually deliver 5000mAh. For that, you need specialized equipment. Think of it as checking if a person has a fever; it tells you if they are sick right now, but not how fit they are overall.

How are lithium-ion batteries tested?

You know a multimeter isn't enough for professional quality control. What does a comprehensive, factory-level testing process for lithium-ion batteries actually involve?

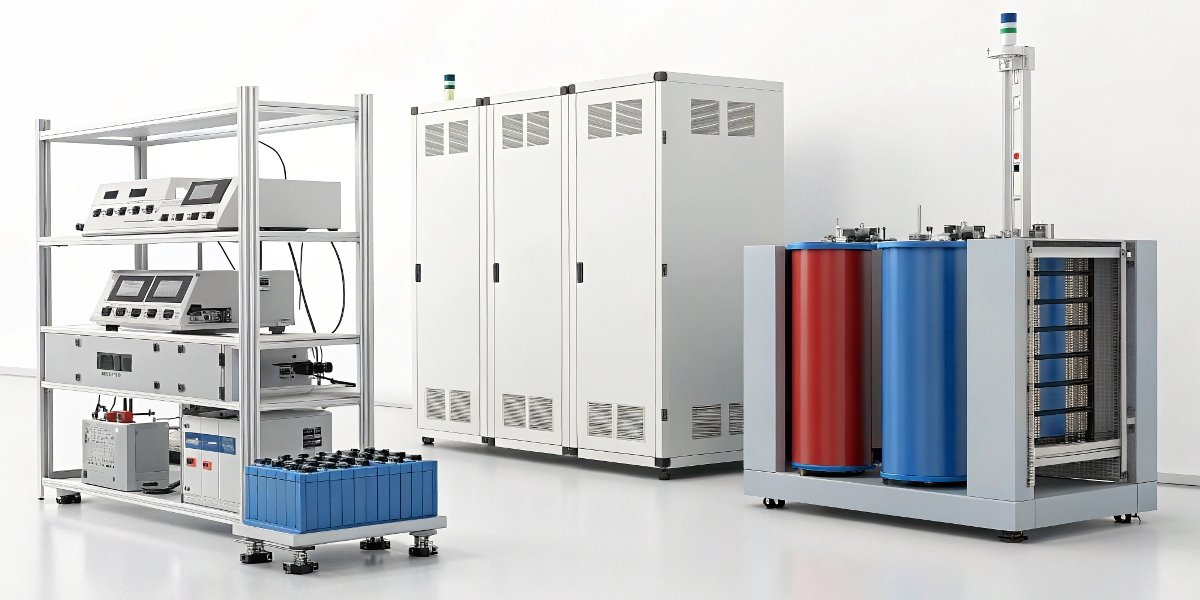

Professional lithium-ion battery testing is a rigorous process using specialized analyzers. It includes basic performance tests for capacity and internal resistance, safety tests² for abuse tolerance, and long-term cycle life tests to predict longevity.

In my factory, we follow a strict testing protocol to validate every batch of cells. It's a process I've refined over my 10 years in the industry.

1. Basic Performance Testing

This is the first step. We use a professional battery analyzer to charge and discharge the cell under controlled conditions. This gives us two critical numbers:

• Capacity (Ah): We measure the exact energy the cell can hold, ensuring it meets the datasheet specification.
• Internal Resistance (IR): This tells us how well the battery can deliver power. Lower IR is better. A high IR means the cell will get hot and perform poorly under high load.

2. Cycle Life Testing

We take a sample of cells and put them through hundreds or thousands of charge/discharge cycles. This test simulates years of use in a few months, allowing us to accurately predict the battery's service life and ensure it meets the product's requirements.

3. Safety Testing

This is non-negotiable. Cells are subjected to a range of abuse conditions like overcharging, short-circuiting, crushing, and high temperatures to ensure they fail in a safe, predictable manner without causing a fire.

What is the standard for lithium-ion cell testing?

You're designing a product for international markets. You need to know which official safety and quality standards your batteries must meet to be compliant and avoid legal issues.

The most critical international standards for lithium-ion cell testing are UN 38.3 for safe transportation, IEC 62133 for consumer product safety, and UL 1642 for cell-level fire and explosion safety, especially for the North American market.

Navigating these standards is a huge part of my job. I once had a client whose entire shipment was held up at customs for weeks because their battery's UN 38.3 certification was not in order. It was a costly delay that could have been avoided. These aren't just suggestions; While they are not mandatory if just ship from China to your country.

Standard	Purpose	Key Tests Involved
UN 38.3	Required for Transport of all lithium batteries (air, sea, ground).	Altitude simulation, thermal cycling, vibration, shock, short circuit.
IEC 62133	Global Safety for portable electronics.	Crush, continuous low-rate charge, overcharge, forced discharge.
UL 1642/2054	US Market Safety against fire/explosion risk.	Projectile, crush, impact, severe thermal abuse.

Working with a supplier who understands and certifies to these standards from the start saves incredible amounts of time and money. It's a core part of our service at LithoTop.

How to check if a lithium ion battery is good or bad?

You have a batch of 21700 cells ready for production. How do you quickly and effectively identify a "good" cell from a "bad" one to ensure product consistency?

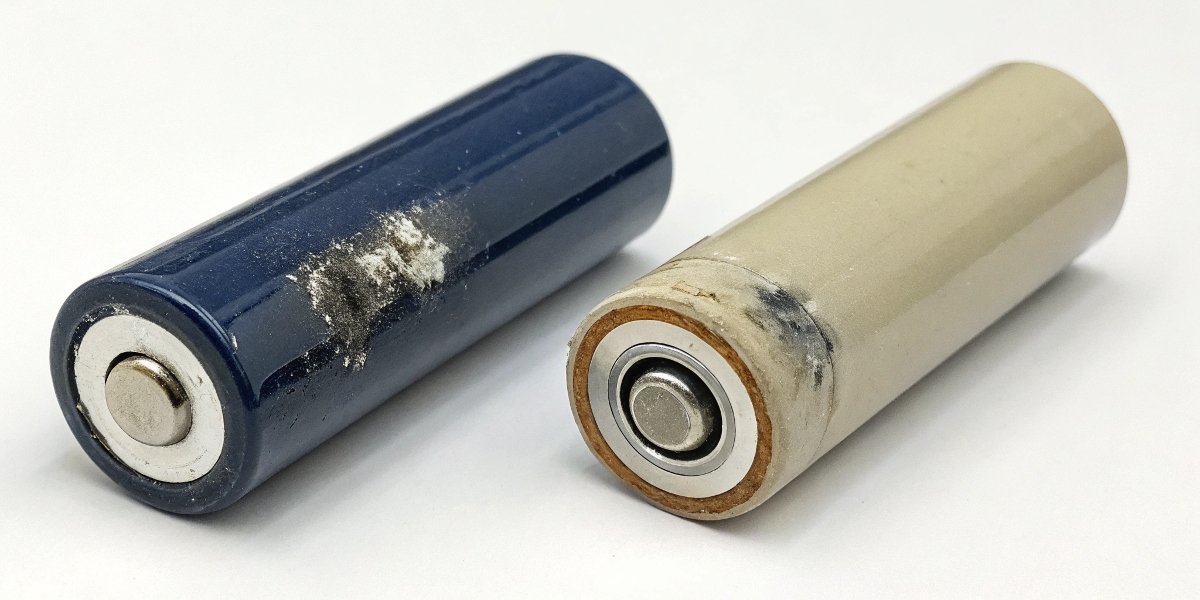

A good cell meets its datasheet specs for capacity and internal resistance, and has no physical flaws. A bad cell has low capacity, high internal resistance, high self-discharge, or shows physical signs of damage like swelling or leaking.

Here's how we separate the good from the bad in mass production, a process known as grading or binning.

The Profile of a "Good" Cell

• Performance: Its measured capacity is at or slightly above the nominal rating. Its internal resistance is low and consistent with the batch.
• Stability: It has a very low self-discharge rate, meaning it holds its charge for a long time when idle.
• Appearance: The casing is flawless, with no dents, scratches, or any signs of corrosion or leakage.

The Profile of a "Bad" Cell

• Performance: The capacity is well below the datasheet rating, or the internal resistance is abnormally high. A high IR cell is a red flag for poor performance and potential safety issues.
• Stability: It loses charge quickly, indicating an internal issue.
• Appearance: Any swelling, leaking, or physical damage automatically marks the cell as bad and unsafe.

In our factory, we use automated sorting machines³ that test thousands of cells, measuring their exact capacity and internal resistance. This allows us to group them into highly consistent batches, which is critical for building reliable multi-cell battery packs.

Conclusion

Testing 21700 cells is a crucial, non-negotiable process. From simple multimeter checks to full-scale safety and performance analysis, rigorous testing is the only way to guarantee a reliable and safe product.

---
