Confused by battery labels? You worry that charging a "Li-ion" device with a "LiPo" power bank could cause a dangerous mismatch, potentially damaging your product or even starting a fire.
Yes, it is perfectly safe. A quality power bank outputs a standard, regulated voltage (like 5V USB). The device being charged uses its own internal circuit to manage the power safely. The power bank's internal battery chemistry (LiPo) is irrelevant to the device.
This is one of the most common questions my clients ask, and it stems from a simple misunderstanding. As a battery pack designer, I want to be clear: the magic isn't in the raw battery cell, it's in the clever electronics that control the flow of power. You're not directly connecting a LiPo cell to a Li-ion cell. A power bank is a sophisticated device. Its job is to take the energy from its internal battery and serve it up in a universally safe format, like the USB standard. The safety and performance depend entirely on the quality of that control circuitry, not the type of lithium battery inside.
Can I charge a Li-ion battery with a LiPo charger?
You see specific "LiPo chargers" for your hobby drone, and wonder if it's safe to use on a power tool battery labeled "Li-ion." The different labels make you hesitate.
Yes, provided the charger's voltage and current settings match the battery's requirements. Both Li-ion and LiPo cells use the same CC-CV charging principle, typically terminating at 4.2V per cell. The specifications are what matter, not the label.
In my experience, the terms "Li-ion charger" and "LiPo charger" are mostly for marketing to different audiences. Underneath the plastic casing, they do the exact same job: they execute a Constant Current-Constant Voltage (CC-CV) charging profile. Lithium-ion (in a metal cylinder) and Lithium-polymer (in a flexible pouch) are just different packages for very similar chemistry. Both are extremely sensitive to being charged to the correct voltage.
Here are the critical factors you must match:
- Termination Voltage: For most standard cells, this is 4.20V. Using a 4.35V charger on a 4.20V cell is a recipe for disaster.
- Cell Count (Series): A charger for a 3-cell (11.1V) pack cannot be used on a 1-cell (3.7V) battery.
- Charge Current: The current (Amps) should be appropriate for the battery's capacity, usually between 0.5C and 1.0C.
As long as these three parameters on the charger correctly match the specifications of the Li-ion battery1 pack, it will charge safely.
Are Li-ion and LiPo chargers the same?
Wondering if you need to buy two separate chargers for your Li-ion and LiPo batteries? The marketing makes them seem different, creating confusion and costing you money if they're actually the same.

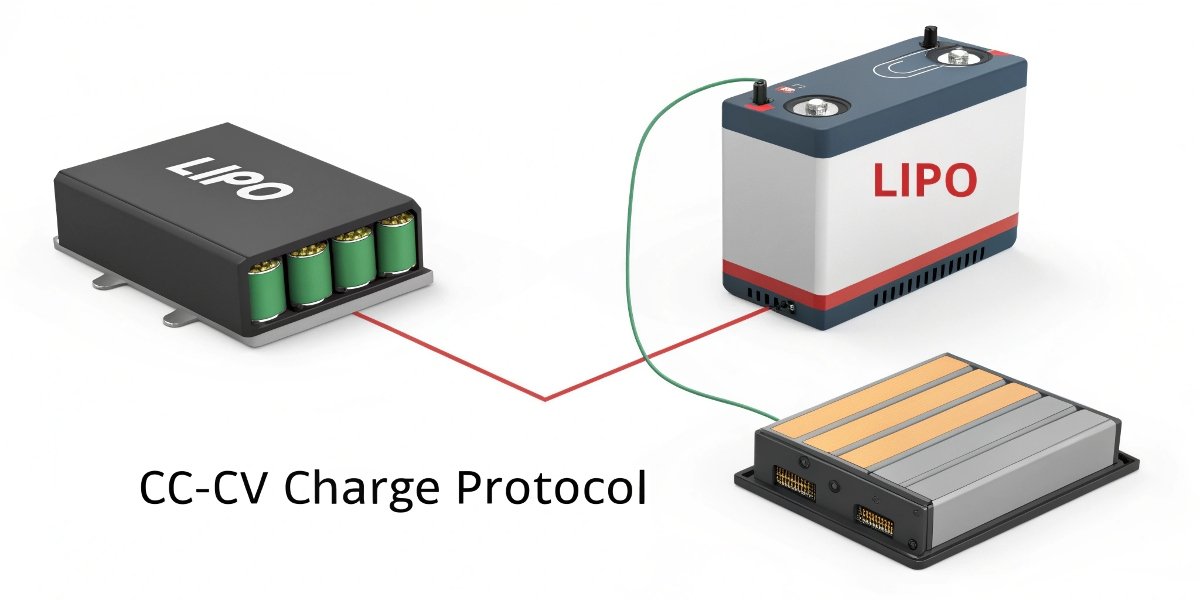

Functionally, yes, they are the same. Both are simply CC-CV chargers designed for lithium chemistry. The critical difference is ensuring the voltage and current settings on the charger exactly match the specific battery pack (Li-ion or LiPo) you are charging.
Let’s simplify this. Think about the power bank charging your phone. The power bank's job is to provide a stable 5 volts through a USB port. Your phone has a little computer inside called a Charge Management Controller. That controller is the real "charger." It takes the 5 volts and carefully manages the current and voltage going into its internal battery, following the CC-CV process perfectly. It doesn't care if the 5 volts came from a wall adapter, a laptop, or a power bank with a LiPo battery inside. The same logic applies to dedicated chargers. A good charger is simply a power supply that can execute the CC-CV profile correctly. Whether the battery it's charging is a cylindrical Li-ion 18650 cell or a flat LiPo pouch cell, the charging principle is identical. The only danger is a mismatch in voltage or using a poor-quality power bank with unstable output, which could damage the phone's charging circuit.
How to charge lithium-ion batteries safely?
You know that lithium batteries can be dangerous if handled improperly. The fear of causing a fire or damaging expensive equipment makes you extra cautious, but you need clear, actionable rules to follow.
Always use the charger designed for your device. Never use or charge a battery that is damaged, swollen, or punctured. Charge in a temperature-controlled environment and on a non-flammable surface, and avoid leaving it charging unattended.
As a manufacturer, safety is the foundation of everything I do. For any product manager like Jacky, ensuring the end-user can charge the product safely is non-negotiable. Here is the safety protocol I recommend to all my clients.
My Golden Rules for Safe Charging:
- Use the Original or a Certified Charger: The manufacturer's charger is designed with the exact voltage and current profile for your battery. If you must use a replacement, ensure it's a high-quality, certified unit with matching specs.
- Inspect Before Charging: Never charge a battery that shows any signs of damage. This includes swelling (puffiness), dents, tears in the wrapper, or any signs of leaking. A damaged battery is unstable.
- Mind the Temperature: Do not charge batteries in extreme heat or below freezing. The ideal charging temperature is between 10°C and 45°C (50°F to 113°F). Charging outside this range can cause permanent damage.
- Charge on a Safe Surface: Always charge on a non-flammable surface like concrete or a ceramic tile, away from anything that could catch fire.
- Don't Go to Extremes: For best life, follow the 80/20 rule. Avoid leaving the battery at 100% or 0% for long periods.
Can I charge a lithium-ion battery with a regular battery charger?
You have an old "regular" battery charger in your garage meant for AA NiMH batteries or maybe a car battery. You might think a charger is a charger, but this is a dangerous assumption.
Absolutely not. A charger for a different chemistry like NiMH or Lead-Acid will destroy a lithium-ion battery and will very likely cause a fire. They use completely different charging methods that are incompatible and extremely dangerous for lithium cells.
This is the most critical point of safety I can make. Using the wrong type of charger is not a small mistake; it is a guaranteed failure. Here’s why it is so dangerous.
| Charger Type | How It Works | Why It's Deadly for Li-ion |
|---|---|---|
| Li-ion (CC-CV) | Charges at a constant current until voltage hits a peak (e.g., 4.2V), then holds that voltage while current drops. | This is the correct, safe method. |
| NiMH/NiCd | Pushes current continuously and looks for a tiny voltage drop to know the battery is full. | A Li-ion battery's voltage never drops. The charger will never stop, pushing the voltage higher and higher until the cell experiences thermal runaway and explodes. |
| Lead-Acid | Uses a multi-stage process, often ending in a "float charge" to keep the battery topped off. | This float charge method will continuously overcharge a Li-ion battery, leading to plating, gas buildup, and catastrophic failure. |
Mixing charger chemistries is the single most common cause of battery fires I have seen in the consumer world. The only "regular" charger you can use is one that is specifically and clearly labeled as being for Lithium-ion/Li-Polymer batteries.
Conclusion
It is safe to use a quality LiPo power bank2 to charge a Li-ion device. The key to safety is not the battery chemistry, but the quality of the charging circuits.
